Product Description
A Touch Of Elegance

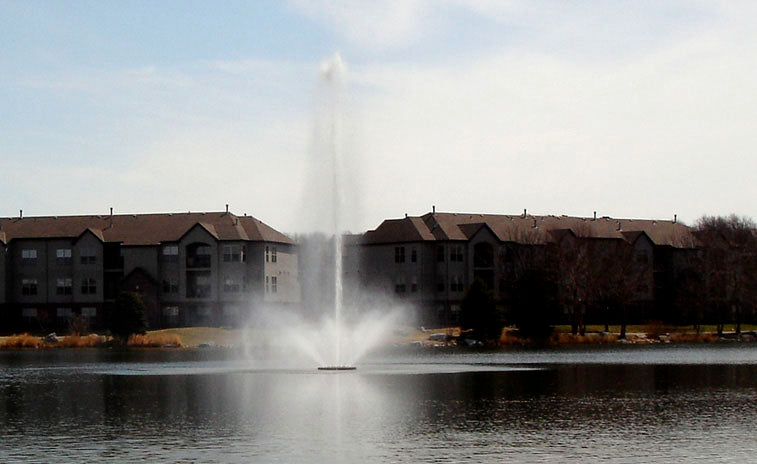

If a landscape needs a dramatic focus on a water feature, The Otterbine 10 HP Giant Fountain line is here for you. The Otterbine Aqua Star model is often used in hotels, resorts and shopping centers, as it impresses people with its dramatic two-tiered effect and creates a perfect backdrop.
Thanks to a unique launching system, in most cases, there is no need for you to use cranes during the installation process. What you might need, however, is a certified electrician.
The float visibility in the water, as well as the flotation level, are adjustable thanks to the float ballasts. All the components are made out of corrosion-resistant materials - stainless steel, brass and thermoplastics. The 316 st/st upgrade allows our product to work perfectly fine, even in brackish or saltwater conditions.
What’s included:
- unit
- fiberglass power control center
- cable
If you want to prolong the enjoyment of the fountain until late evening hours, you can add a Fountain Glo High Voltage and LED light sets, while if you want to increase the life of the motor, the Sub-Monitor motor controls are your best best.
The product comes with a two-year warranty. However, it can be extended to three years with the Sub-Monitor motor control option. The extended warranty covers the unit, cable and power control center.
The Otterbine Aqua Star comes in five variants, differing by the voltage and number of phases - 208v/3ph, 230v/3ph, 460v/3ph, 575v/3ph and 230v/1ph.
Product Specifications: Aqua Star
60Hz |
10 HP | 15 HP | 25 HP |
Spray Height (ft) | Upper: 36 Lower: 8 |
Upper: 40 Lower: 10 |
Upper: 50 Lower: 12 |
Spray Diameter (ft) | Upper: 1 Lower: 33 |
Upper: 1 Lower: 37 |
Upper: 1 Lower: 42 |
GPM | 225 | 350 | 400 |
Voltage/Phase/Amp 3450rpm@60Hz |
230/1/47 230/3/30 460/3/15 |
230/1/67 230/3/44 460/3/22 |
230/3/70 460/3/3 |
PDF Downloads: Specification Form | Sale Sheet 60Hz| Sale Sheet 50Hz
Download .DWG files and CAD drawings for the Aqua Star Giant Fountain directly at http://microsite.caddetails.com/377
PDF Downloads:
Owner's Manual: Giant Fountain
CE Market Install Manuals: CE English| CE French| CE German| CE Polish| CE Spanish| CE Swedish| CE Turkish
PDF Download: Parts List with Exploded Views
