PSA Axiom Skimmer

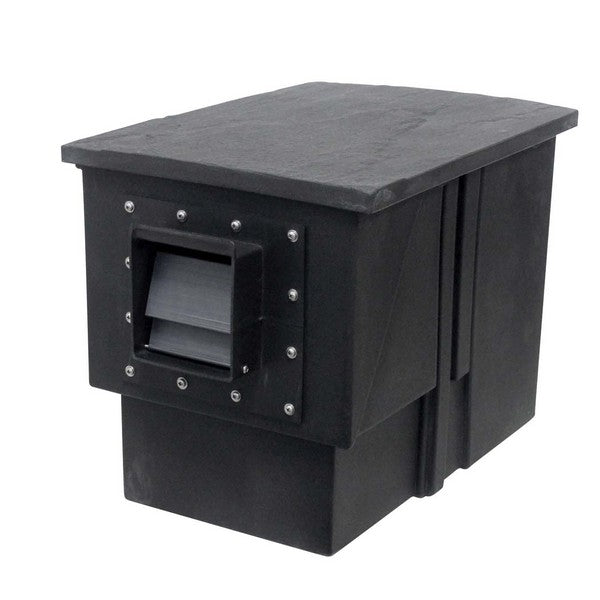

PSA5000 AXiOM Pond Skimmer

EasyPro Pro-Series skimmer with a front-to-back design allowing pump to sit behind debris net instead of beside it.

Available in 4 sizes ranging from 5000 to 11000 gph.

Features include:

• Two chamber front-to back design - with pump chamber sitting behind the debris net instead of along side it
• Two chamber design eliminates cutting filter pads to fit around the pump and plumbing
• Adjustable overflow for adjusting finished pond level
• One piece aluminium framed debris net for quick and easy cleaning
• Dual factory installed 2" spinweld bulkhead fittings for plumbing and overflow connections
• Stainless steel hardware for securing liner
• 6" water inlet

Compatible with:

• SETS2 Extension tube for setting skimmer back from pond edge
• PS1UV 36watt UV clarifer installed in skimmer
• Molded faux rock PS1LID

Additional information:

• Maximum flow rate - 85gpm/5100 gph
• 29"L x 19"W x 21"H
• Ships at UPS Dimensional rates
• Recommended flow rate - 60-76gpm (3600-4560gph)
• Weir - 6"


PSA7000 AXiOM Pond Skimmer

• 8" water inlet

Compatible with:

• SETS2 Extension tube for setting skimmer back from pond edge
• Molded faux rock PS1LID

Additional information:

• Maximum flow rate - 118 gpm (7080 gph)

• 29"L x 19"W x 21"H
• Ships at UPS Dimensional rates
• Recommended flow rate - 75-105 gpm (4500-6300 gph)

• Weir - 8"

PSA9000 AXiOM Pond Skimmer

• 8" water inlet

Compatible with:

• SETS2 Extension tube for setting skimmer back from pond edge


Additional information:

• Maximum flow rate - 150 gpm (9000 gph)

• 33"L x 19"W x 23"H

• Ships at UPS Dimensional rates
• Recommended flow rate - 100-135 gpm (6000-8100 gph)

• Weir - 8"

PSA11000 AXiOM Pond Skimmer

• 10" water inlet

Additional information:

• Maximum flow rate - 185 gpm (11,100 gph)

• 33"L x 19"W x 23"H

• Ships at UPS Dimensional rates
• Recommended flow rate - 135-165 gpm (8100-9900gph)

• Weir - 10"

Part #	Description	Size (L x W x H)	Water Inlet	Ship Weight
PSA5000	5000 GPH Axiom Skimmer	29" x 19" x 21"	6"	35 lbs.
PSA7000	7000 GPH Axiom Skimmer	29" x 19" x 21"	8"	35 lbs.
PSA9000	9000 GPH Axiom Skimmer	33" x 19" x 23"	8"	44 lbs.
PSA11000	11000 GPH Axiom Skimmer	33" x 19" x 23"	10"	44 lbs.
