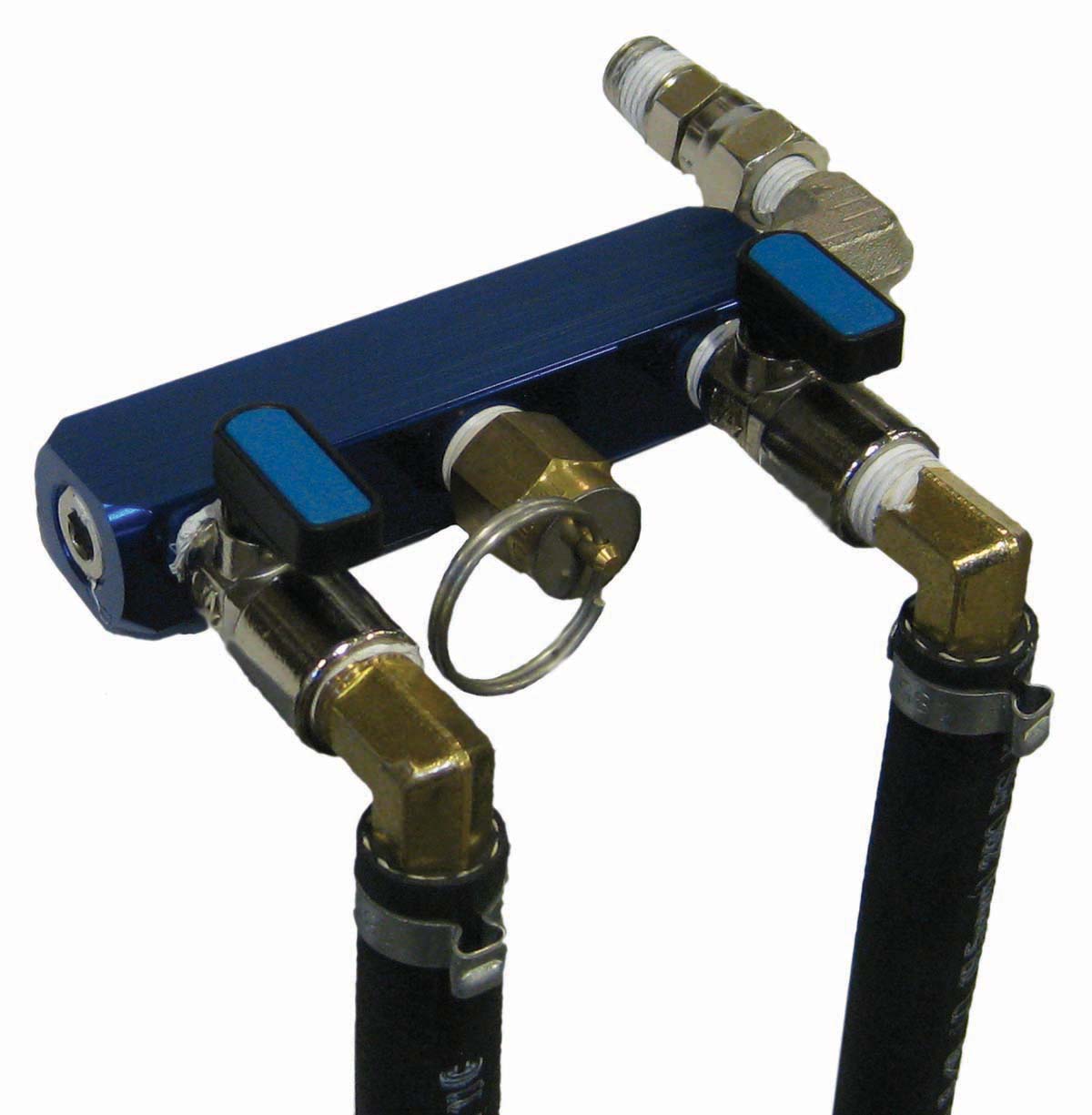

Valved Outlet Assembly (2 outlets) Manifold

2 outlet valved aeration manifold configurations are ideal when you need to split airflow from a single compressor into two independently adjustable aeration lines. This valved outlet assembly is designed to help you fine-tune air delivery so each diffuser (or aeration zone) gets the right volume of air, even when depths, line lengths, or backpressure differ.

By giving each outlet its own shutoff/control valve, you can balance flow between zones instead of over-aerating the easiest path and starving the harder one. That makes a 2 outlet valved aeration manifold especially useful in oblong ponds, irregular shorelines, or systems where diffusers are placed at different distances from the compressor.

Why independent outlet control matters

• Balance uneven resistance: Compensate for different depths and tubing runs so bubble patterns remain consistent.
• Zoned tuning: Direct more air to deeper areas or zones with higher oxygen demand.
• Service without full shutdown: Close one outlet for maintenance while keeping the other zone running.
• System optimization: Reduce wasted airflow and improve overall aeration efficiency through targeted adjustment.

Common applications

A 2 outlet valved aeration manifold is commonly used in multi-diffuser pond aeration layouts, including two-zone systems where one diffuser serves a deeper basin and the second targets a shallow shelf, cove, or problem area. It also fits setups where seasonal adjustments are needed—such as dialing back aeration in a secondary zone during turnover-sensitive periods while maintaining baseline circulation elsewhere.

Installation overview

Mount the manifold in a protected location such as a compressor cabinet or weatherproof enclosure. Connect the compressor discharge to the manifold inlet, then run separate airline tubing from each outlet to its diffuser. Start with both valves partially open, observe bubble output at each diffuser, and adjust valves gradually until airflow is balanced for your intended coverage.

FAQ

Can I run two diffusers at different depths? Yes—this is a primary reason to use a 2 outlet valved aeration manifold, since each line can be adjusted to account for different backpressure.

Do I need to shut off the compressor to adjust flow? Typically no; you can make small valve adjustments while the system is running to dial in diffuser output.
