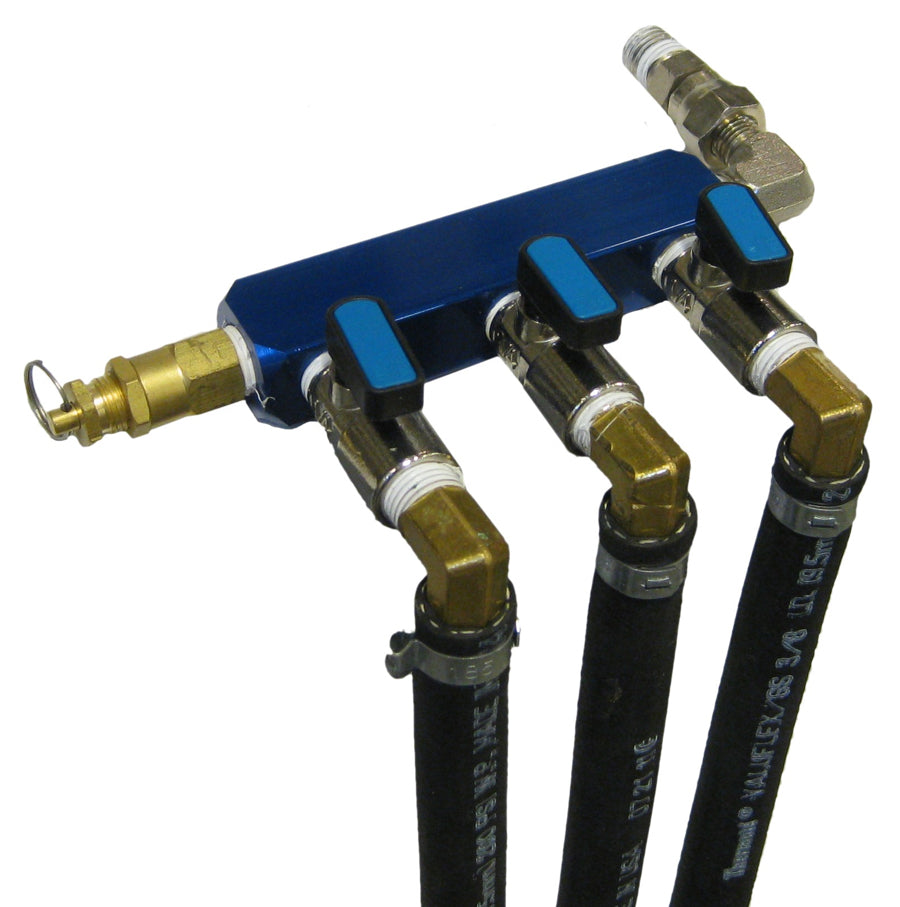

Valve Outlet Item Assembly

multi-outlet air manifold valve assembly setups are a practical way to split compressor output into multiple controllable lines, and this Valve Outlet Item Assembly is designed to make that distribution clean, serviceable, and consistent.

Built with an aluminum and brass design, the assembly is intended for pond aeration and similar air-delivery applications where multiple zones or devices need independent control. A swivel union is included to help simplify removal from a compressor, supporting easier service and seasonal maintenance without fighting rigid connections.

To help manage heat before connecting to air tubing, the assembly includes a 2 ft “heater” hose. This short run can help dissipate heat near the compressor outlet so downstream tubing connections are better protected during typical operating conditions.

Connections and compatibility

• 1/4" air inlets: designed for use with 1/4" outlet rocking piston compressors.
• 3/8" air inlets: designed for use with 3/8" outlet compressors (noted for 4-outlet and 6-outlet valved configurations).
• 3/8" air outlet hoses: accept poly tubing or weighted tubing.

If you are building or upgrading a zoned aeration layout, a multi-outlet air manifold valve assembly can reduce the need for makeshift tees and clamps while giving you a more organized way to route lines. With multiple outlets, you can balance airflow across diffusers or air-driven devices and simplify troubleshooting when a single line needs attention.

For best results, confirm your compressor outlet size, match inlet fittings accordingly, and choose tubing type (poly or weighted) based on your routing and sinking requirements. This multi-outlet air manifold valve assembly is a straightforward option when you want a compact, removable valve-and-manifold solution rather than building a custom manifold from separate parts.

FAQ

Is this suitable for both 1/4" and 3/8" compressor outlets? It is designed with 1/4" and 3/8" inlet options depending on your compressor outlet size; select the configuration that matches your setup.

What tubing can I connect on the outlet side? The 3/8" air outlet hoses will accept poly tubing or weighted tubing, which helps accommodate different pond layouts.

Why include a heater hose? The included 2 ft hose is intended to dissipate heat near the compressor before connecting to air tubing.
