3/4" Fittings for 3/4" Poly Tubing Run - 3/4" X 3/8" BARB W/Clamps

3/4 poly tubing barb fittings with clamps are a dependable choice when you need a secure, vibration-resistant connection for a 3/4" poly tubing run, especially in compressor-driven air or fluid line setups. This kit is intended to support a 3/4" x 3/8" barb configuration and is commonly selected for service work, replacements, or system builds where straightforward push-on barb connections are preferred and retention is reinforced with hose clamps.

In practical terms, barb-and-clamp connections are valued for their simplicity: the tubing is pushed fully over the barb for sealing grip, then the clamp is tightened over the barb area to reduce the risk of pull-off from routine movement and handling. When you’re maintaining line integrity across multiple connection points, using a matched kit can reduce guesswork and help keep fittings, adapters, and clamp sizing consistent. 3/4 poly tubing barb fittings with clamps are particularly useful when you want to streamline maintenance by keeping common connection parts on hand for quick swaps.

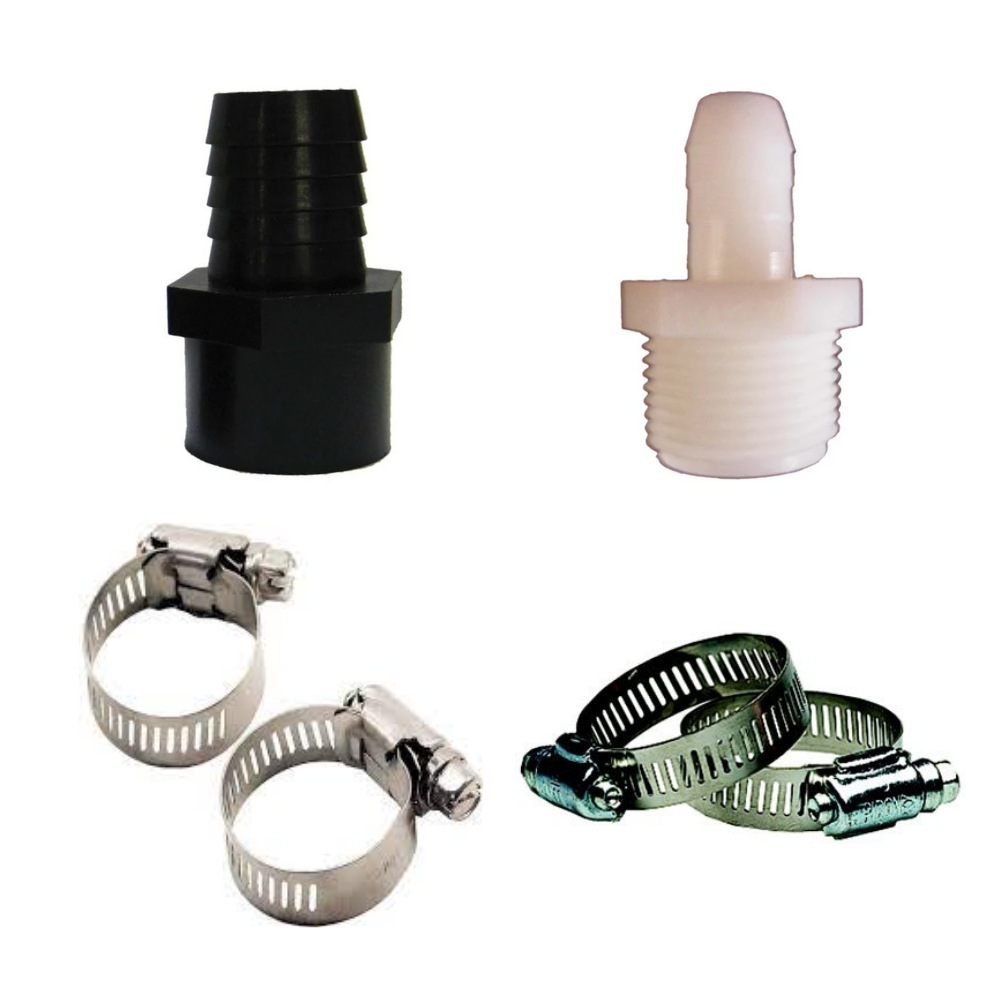

What’s Included

• (1) SS41234 - Barb Fitting 1/2" x 3/4"
• (1) TA1238 - Barb Fitting 1/2" x 3/8"
• (1) BA1434 - 1/4" MPT x 3/4" Barb Brass M.A. for valve manifold
• (1) BA37 - Brass Male Adapter 1/4" x 3/4"
• (1) ERP1V - No Ball Valve - Setup with 3/4" barb
• (2) HC2 - Stainless Steel Hose Clamp 3/8" - 7/8"
• (2) HC3 - Stainless Steel Hose Clamp 7/16" - 1"

Fit & Installation Notes

Confirm tubing inside diameter and mating thread types before installation. For best results, fully seat tubing over each barb, position the clamp directly over the barb section, and tighten to a snug, secure fit without over-compressing the tubing. If your system calls for 3/4 poly tubing barb fittings with clamps, this set helps keep key connection components grouped together for cleaner servicing and more consistent assembly.

FAQ

Will this work with SRC25/SRC50/SRC75? It is listed for compatibility with SRC25, SRC50, and SRC75 compressor kits.

Do clamps come in the kit? Yes, stainless steel hose clamps are included as listed.

Can 3/4 poly tubing barb fittings with clamps be used for new installs? Yes—provided the sizing and connection types match your tubing and equipment.
