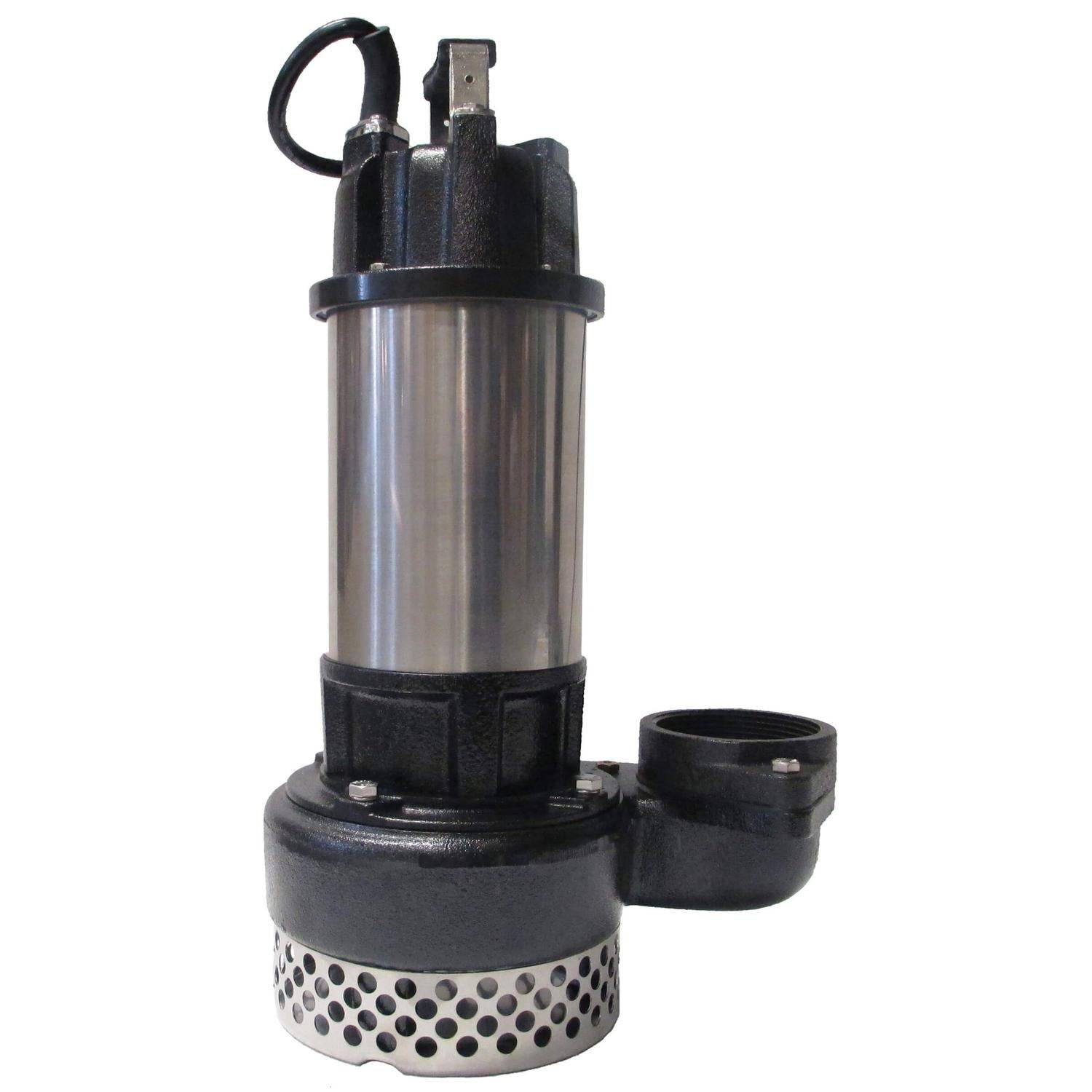

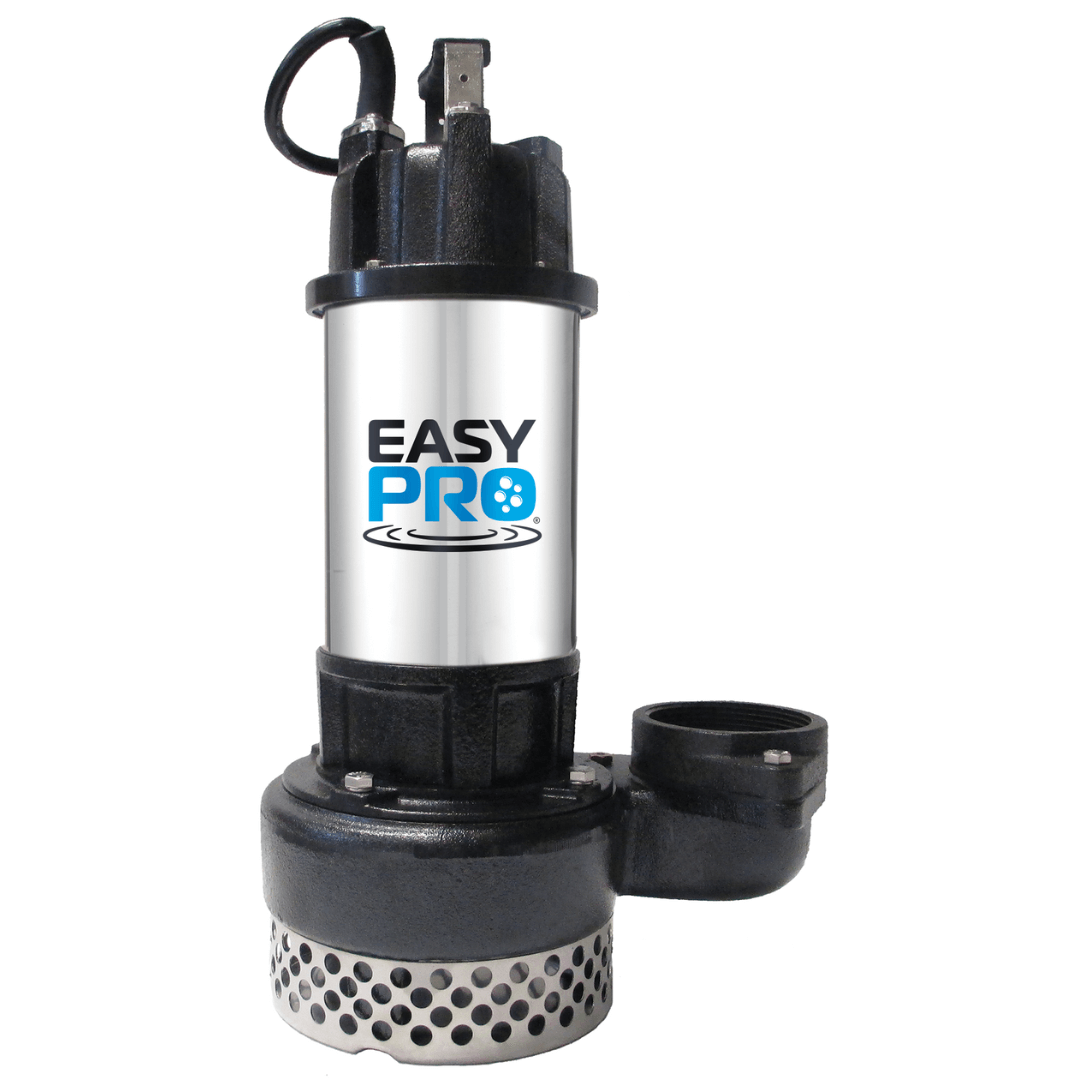

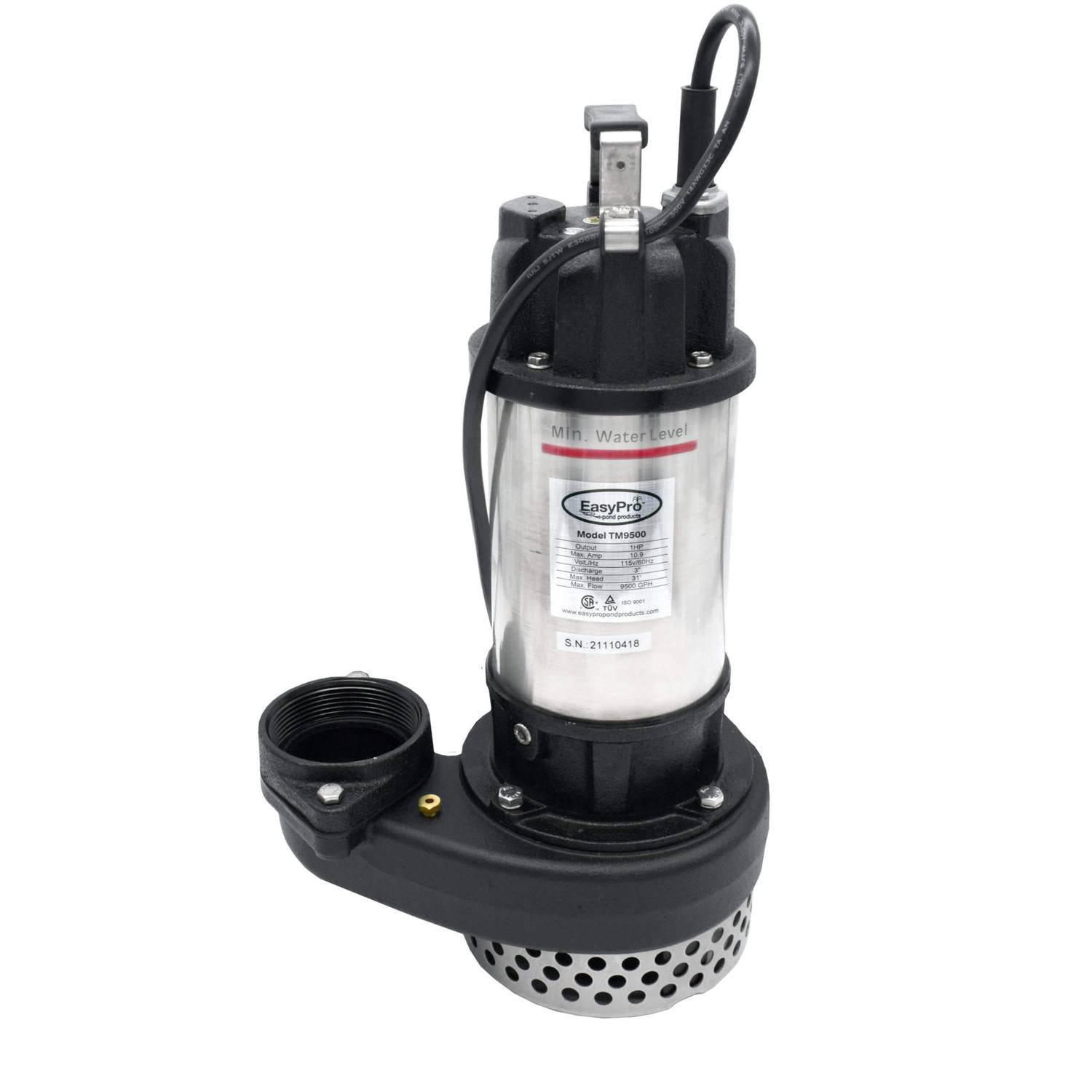

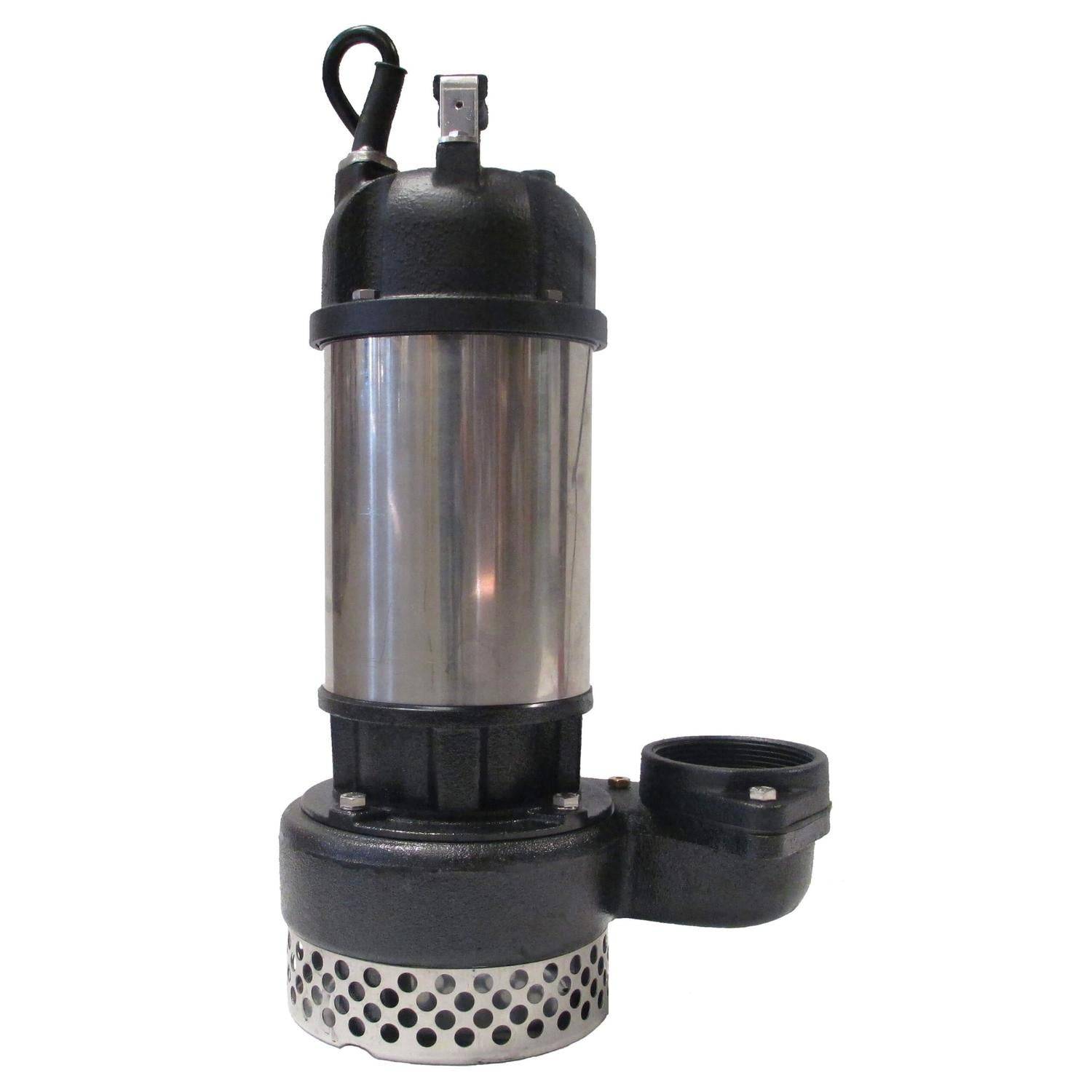

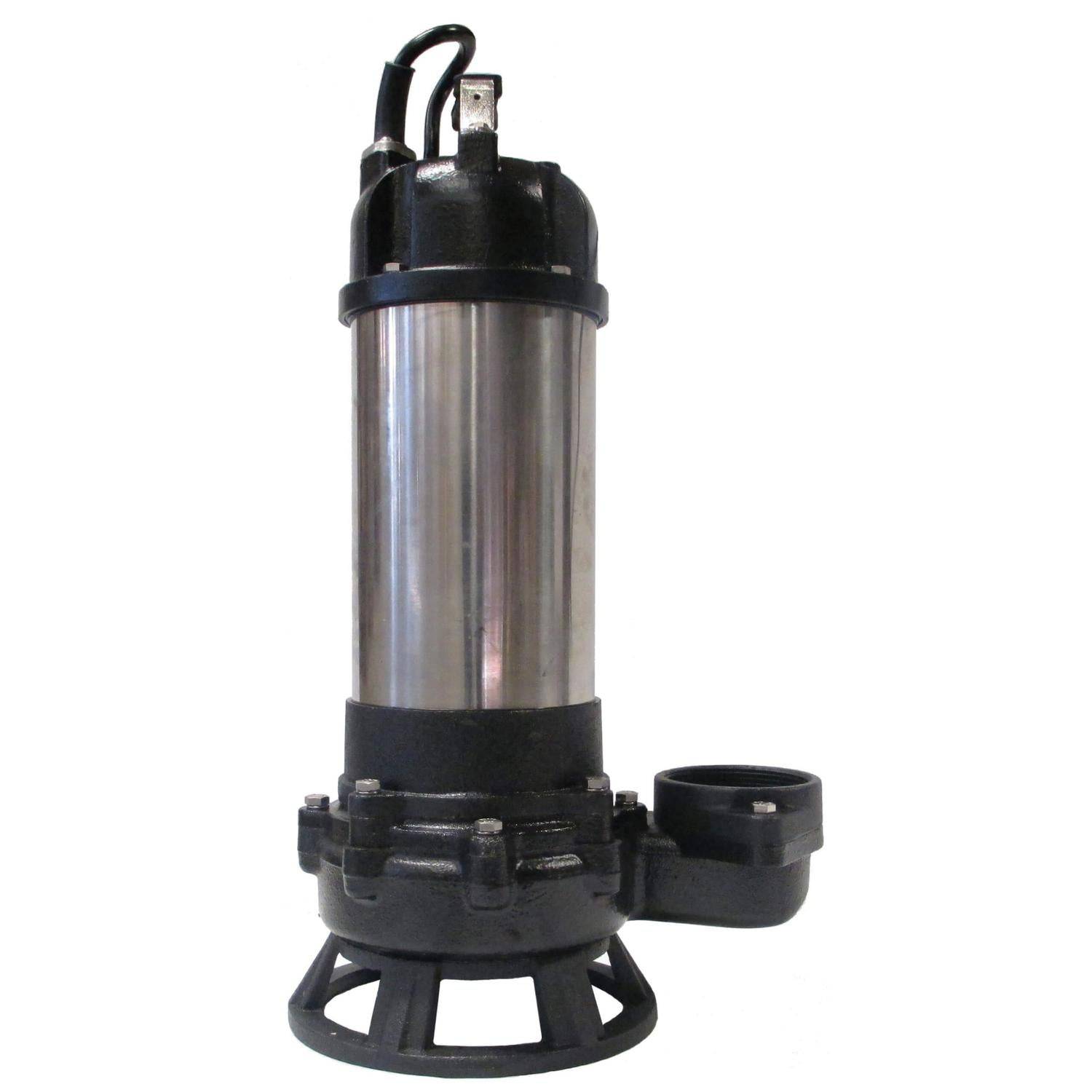

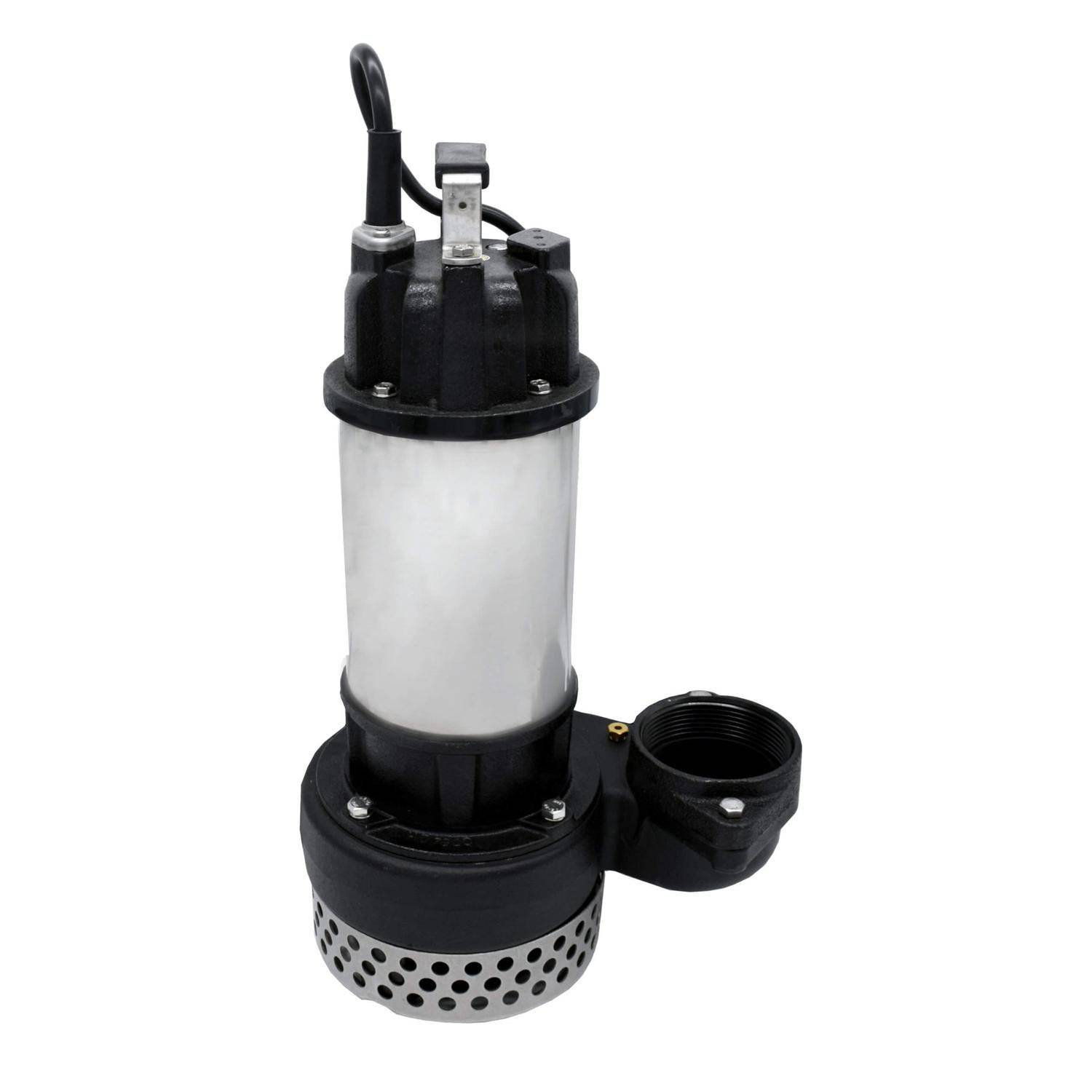

Easypro TM Series High Volume Stainless Steel Submersible Pond & Waterfall Pump
Easypro TM Series High Volume Stainless Steel Submersible Pond & Waterfall Pump
ITEM #: TM9500
Couldn't load pickup availability
Free Shipping on Orders Over $99
Product Description

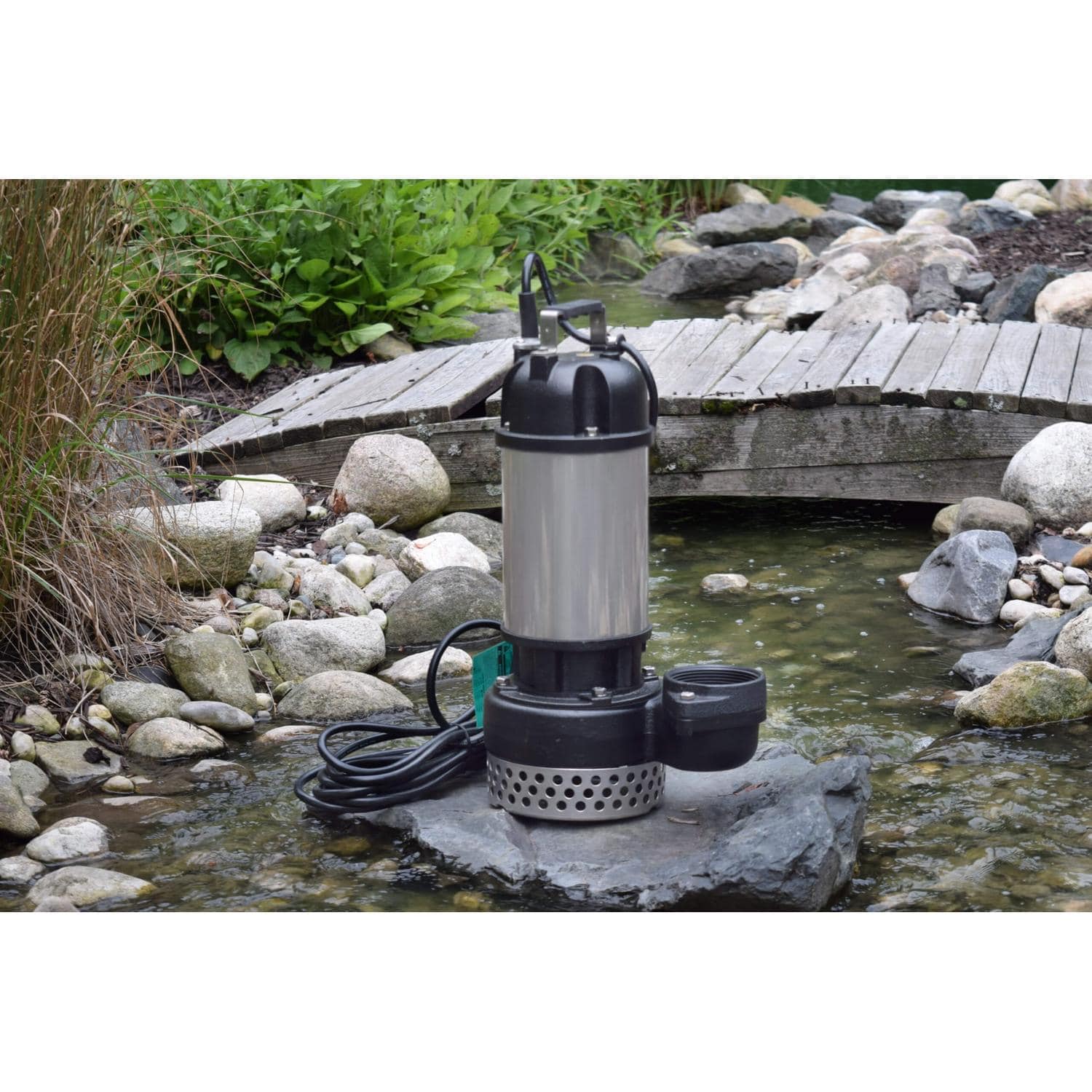

Perfect for Streams and Waterfalls
Optimized for low to medium head streams and waterfalls, the EasyPro TM Series Submersible Pumps combine top-quality Japanese double mechanical seals with a compact design, making them perfect for use in larger skimmers or pump vaults. These pumps are designed to handle the demanding requirements of water features, providing high volume water flow with minimal energy consumption.
Key Features:
- Top Quality Seals: Features top-quality Japanese double mechanical seals for maximum longevity and performance.
- Compact and Efficient: High volume in a compact design allows for installation in large skimmers, ideal for low to medium head waterfalls.
- Thermal Overload Protection: Equipped with thermal overload protection to safeguard the motor from overheating.

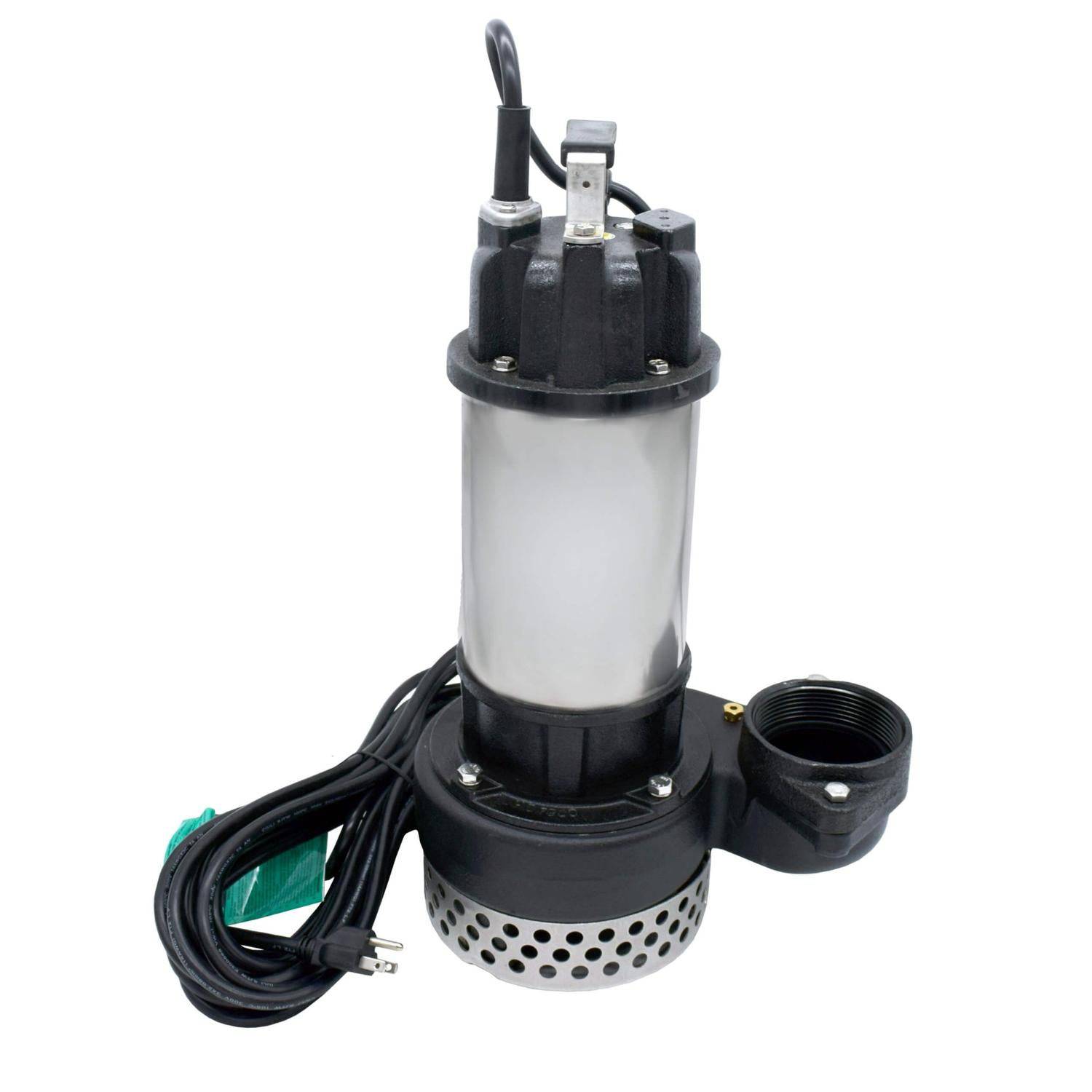

- Versatile Use: 3" outlet and a 30 ft. power cord enhance installation flexibility and pump placement.
Technical Specifications:

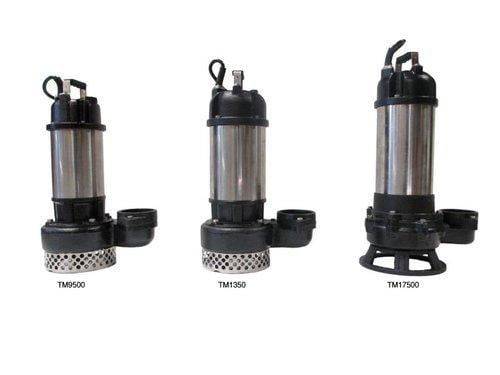

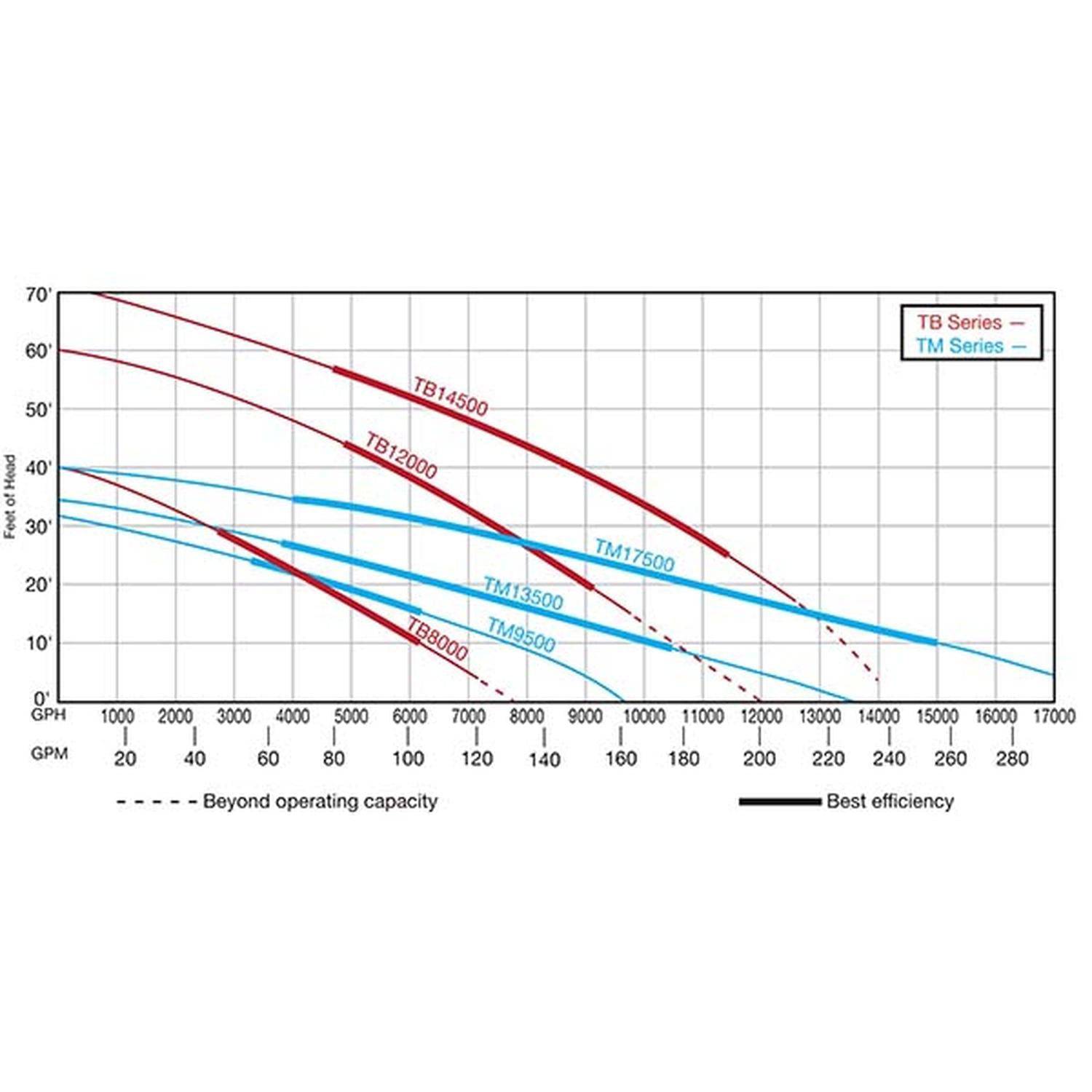

| Model | HP | Volts | Max. Amps | Weight | Dimensions | Max. Head | Max. Flow |
|---|---|---|---|---|---|---|---|
| TM9500 / TM9502 | 1 | 115 / 230 | 10.9 / 5.5 | 52 lbs | 12" x 7.5" x 19.5" | 31' | 9500 GPH |
| TM13500 / TM13502 | 1.5 | 115 / 230 | 12 / 6 | 58 lbs | 12" x 7.5" x 20" | 33' | 13500 GPH |

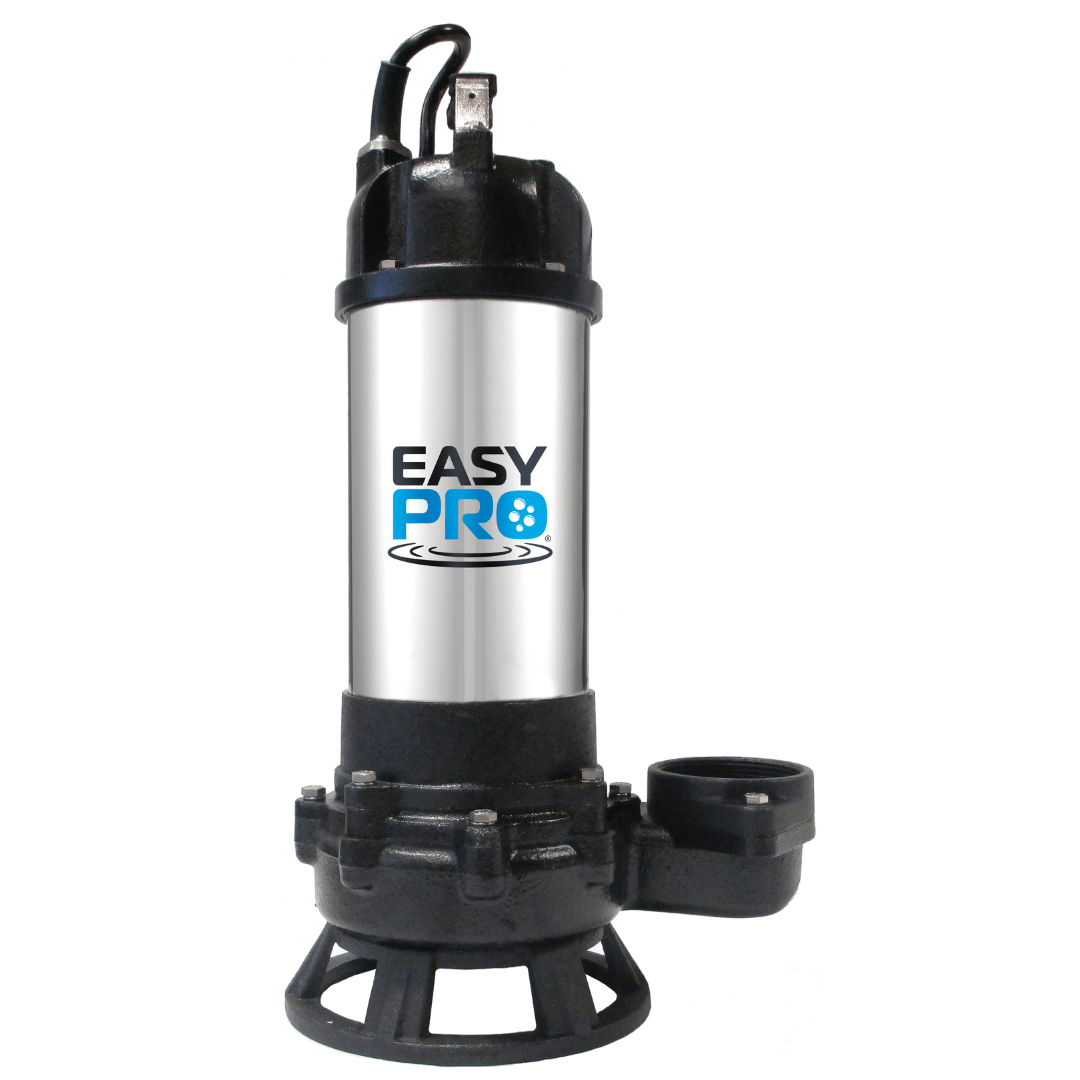

| TM17500 | 2 | 230 | 10 | 70 lbs | 12.6" x 8.6" x 22.5" | 40' | 17500 GPH |
Installation and Safety:
Ensure proper grounding and electrical safety by adhering to local ordinances. Protect connections from water and ensure the power supply matches the pump specifications. Use the pump in submerged conditions only to avoid overheating and damage.
Warranty:
Comes with a two-year warranty, covering defects in material and workmanship, ensuring long-term reliability and customer satisfaction.
With its durable construction and exceptional performance, the EasyPro TM Series Submersible Pump is the ideal choice for enhancing your water features, providing both functional and aesthetic benefits to your environment.
