Wind-powered aerators are a great option if the remote location makes it impossible for you to use regular aerators that would need to be connected to electricity. If you buy Windmill Pond Aerator, you won’t have to pay for the utility costs! In the long run, you will even save money. The newer versions of windmills that you can find on our website have been improved in several ways:
- Can pump up to 3 CFM of air in low winds - up to 4.5 CFM in 15+ MPH wind
- Very easy and simple to assemble
- Blades with rounded edges which improves airflow
- Larger diaphragm and check valves for the increased airflow
- Patent-pending technology decreases the wear and tear of bearings, which makes them more durable
- Can aerate the water in winds as low as 3 MPH
- Designed for up to 2-acre ponds

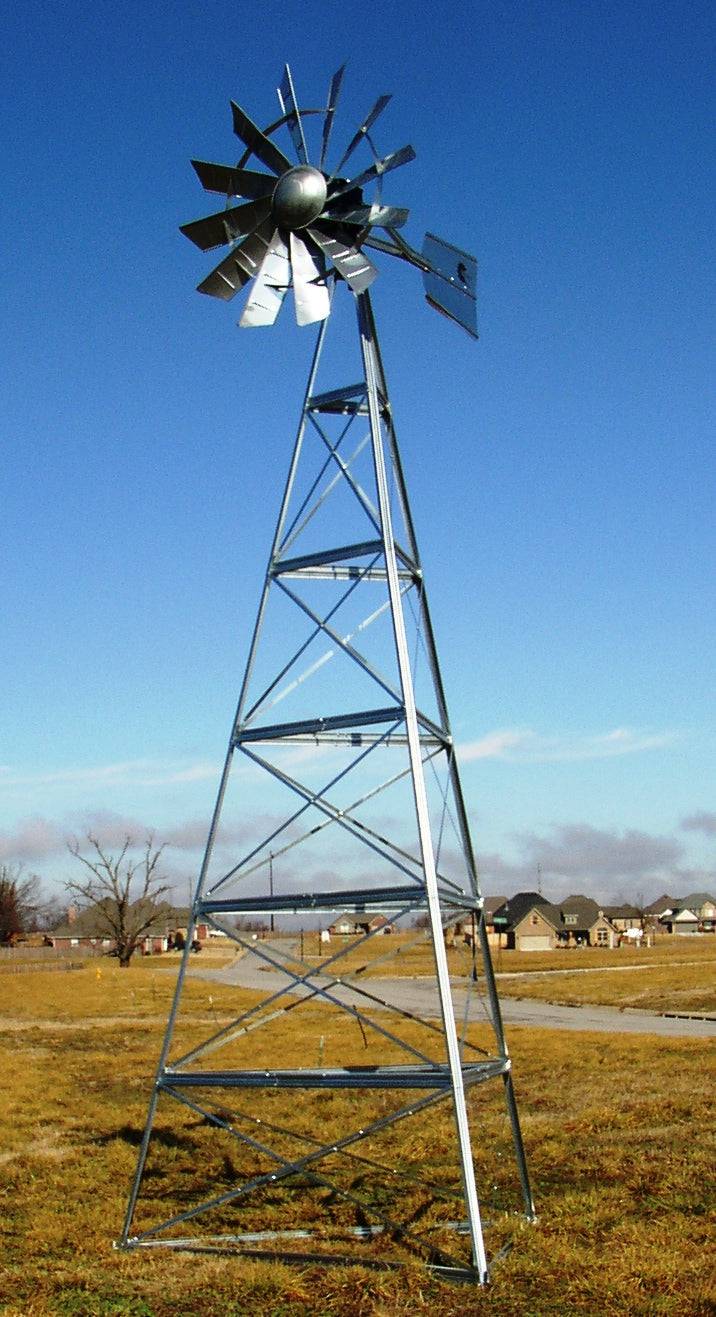

The 54'' diameter head has 12 blades and is self-governing in high winds. 18 gauge galvanized steel parts won’t be damaged by cold or hot temperatures and will work for long years. All parts have oval holes to make the assembly easier.
Windmill Price Includes:

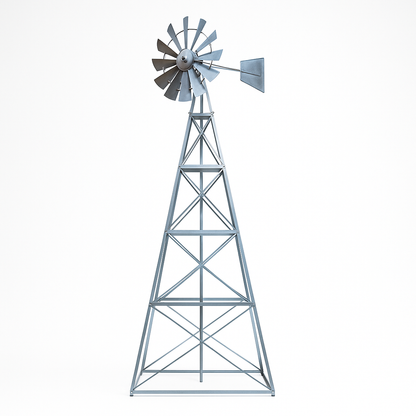

- 1 20' Windmill with the patent-pending "BalCam II" Technology with stainless steel elements

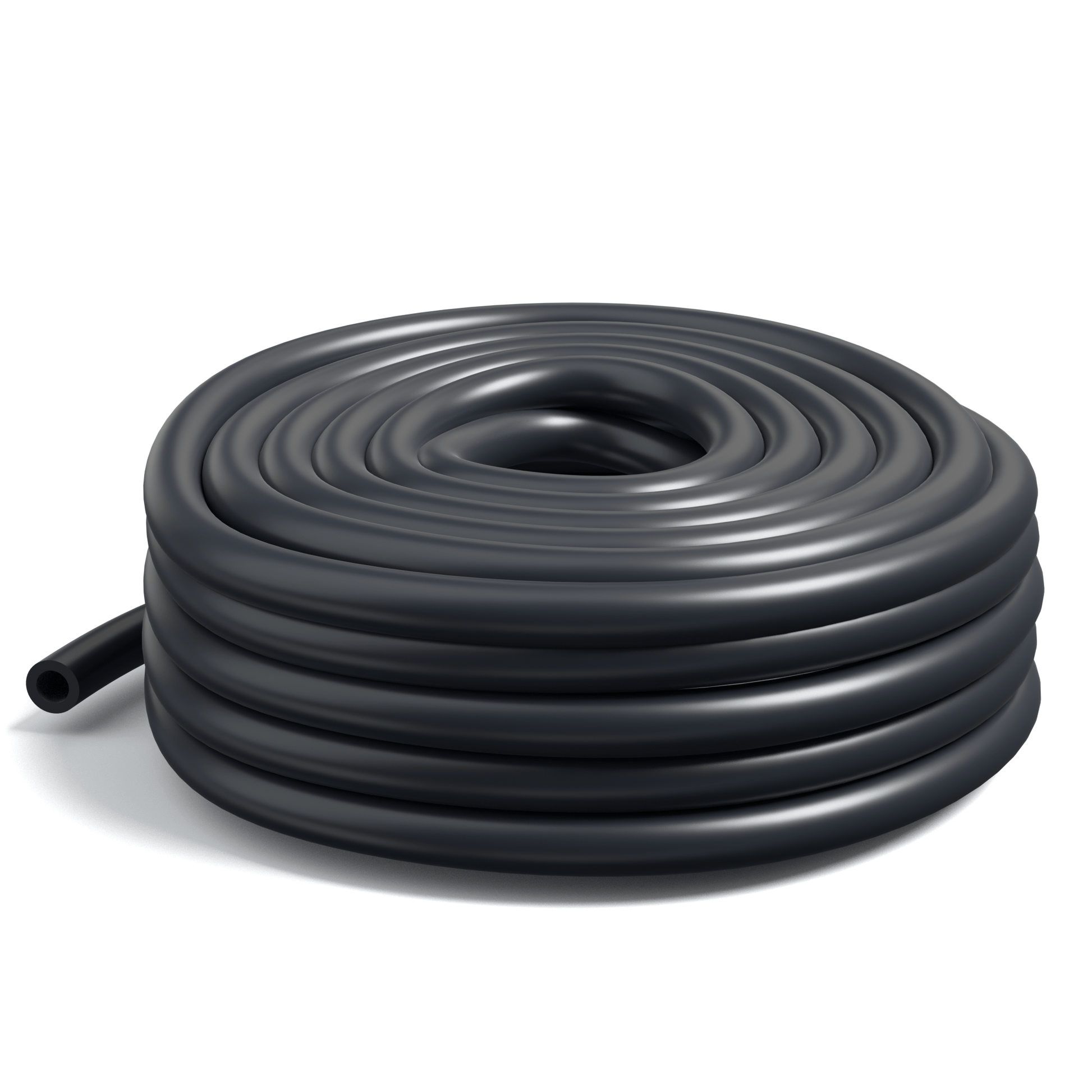

- 1 roll of non-weighted 50' airline
- 1 air stone
- 1 set of pivot points for easier maintenance
- 1 hose connector packs
You won’t find a kit with this much air and this many accessories for the same price! Highly recommended for 1-acre ponds.
Dig three holes for each leg 3 ft deep
put 4ft rod that comes with the kit in the center and cement it
12' windmill leg to leg 63 inches
16' windmill leg to leg 82 inches
20' windmill leg to leg 100 inches
24' windmill leg to leg 119 inches
Blades tip to tip 6.1 feet long
18 gauge steel legs
0.5 CFM 5MPH
2 CFM 10MPH
3 CFM 15MPH
4.5 CFM 30MPH
New video on how to install your windmill:
Windmill Pond Aerators
Operation - Doesn’t require electricity to aerate in as little as 3-5 mph winds. A single system can aerate ponds that are up to 2-3 acres in size. When it comes to larger ponds, you can use several systems. If you are working with wider/shallower ponds, you can use one system, but it’s best to use multiple airstones so that the oxygen will be dispersed more efficiently. Using the OWS Selector valves, you can easily regulate the oxygen to each airstone.
"BalCam" Technology - With this patent-pending technology, a single diaphragm with a balanced camshaft system can produce more air. The workload is distributed on 3 sealed bearings, which makes the bearings much more durable.
Manufacturing - The product is manufactured in the USA. Each piece is cut to order, and the system is assembled in the Outdoor Water Solutions facility.
Assembly - Oval holes for quick alignment make the assembly quicker. Additionally, rounded corners increase safety.

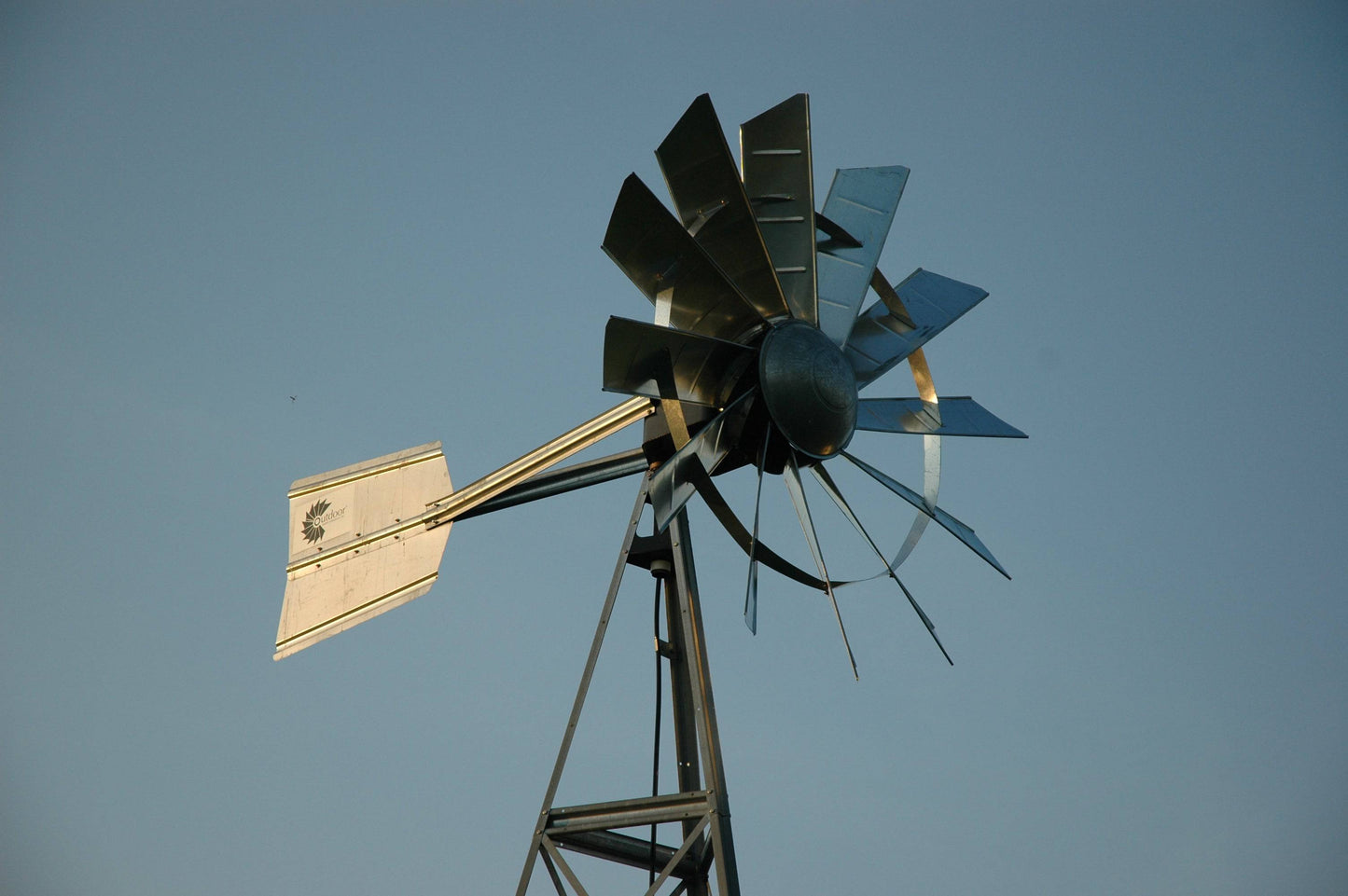

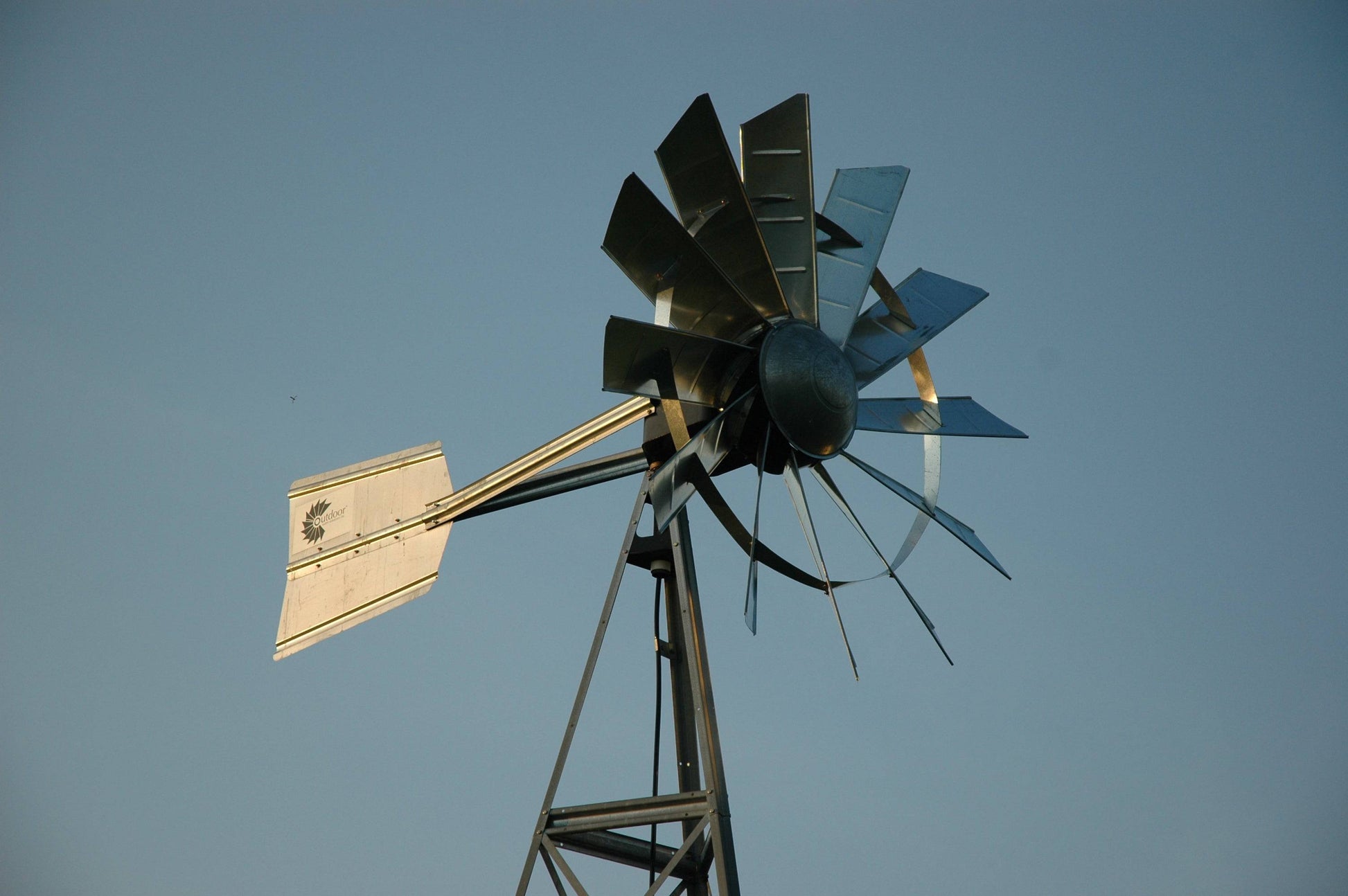

Angle Cut Blades - Can operate even with winds as low as 3 MPH. The wings are longer than those of the competitors, allowing the windmill to catch more air. Total head width is 73", which means that it is the largest head currently on the market!
One Piece Hub Assembly - There are only several parts that need to be assembled, which makes the process quicker. The one-piece hub uses two locking collars and a through bolt at the end of the compressor shaft. You can install the head on the shaft in several minutes, and it will stay put. Squeeze clamps, which are sometimes used, can take over an hour to install and can loosen over time.
Larger Compressor 1/2" Piston Stroke and 10" Diaphragm - Produces the air efficiently, and will serve you for a long time. It can run up to 3 different diffusers and aerate ponds from 1/4 acre up to 3 acres in size.

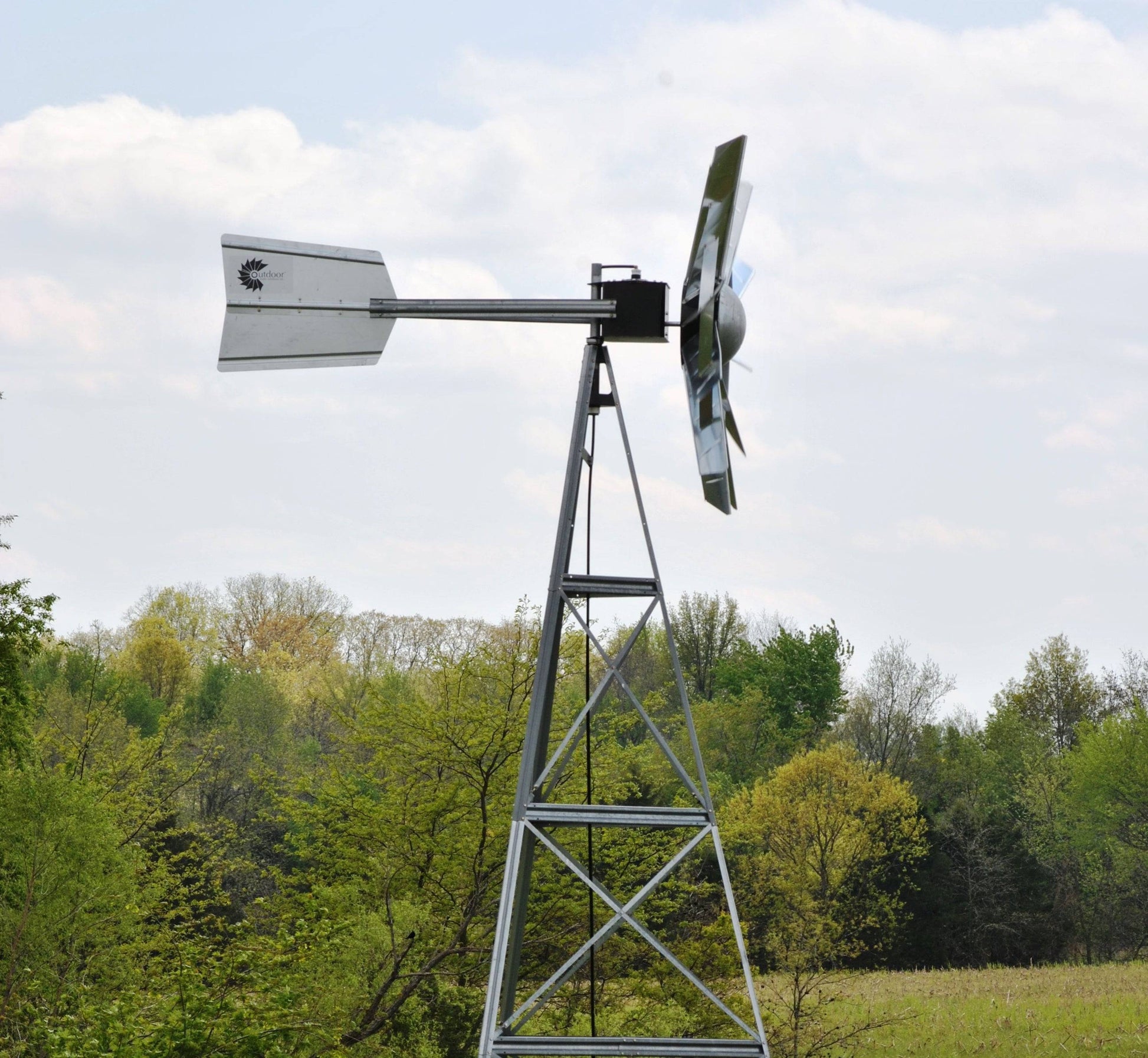

Self-governing Heat and Tail fin design - Tail fin was designed in a way to capture the maximum air. It will also turn out of excessive winds to protect the windmill from damages.

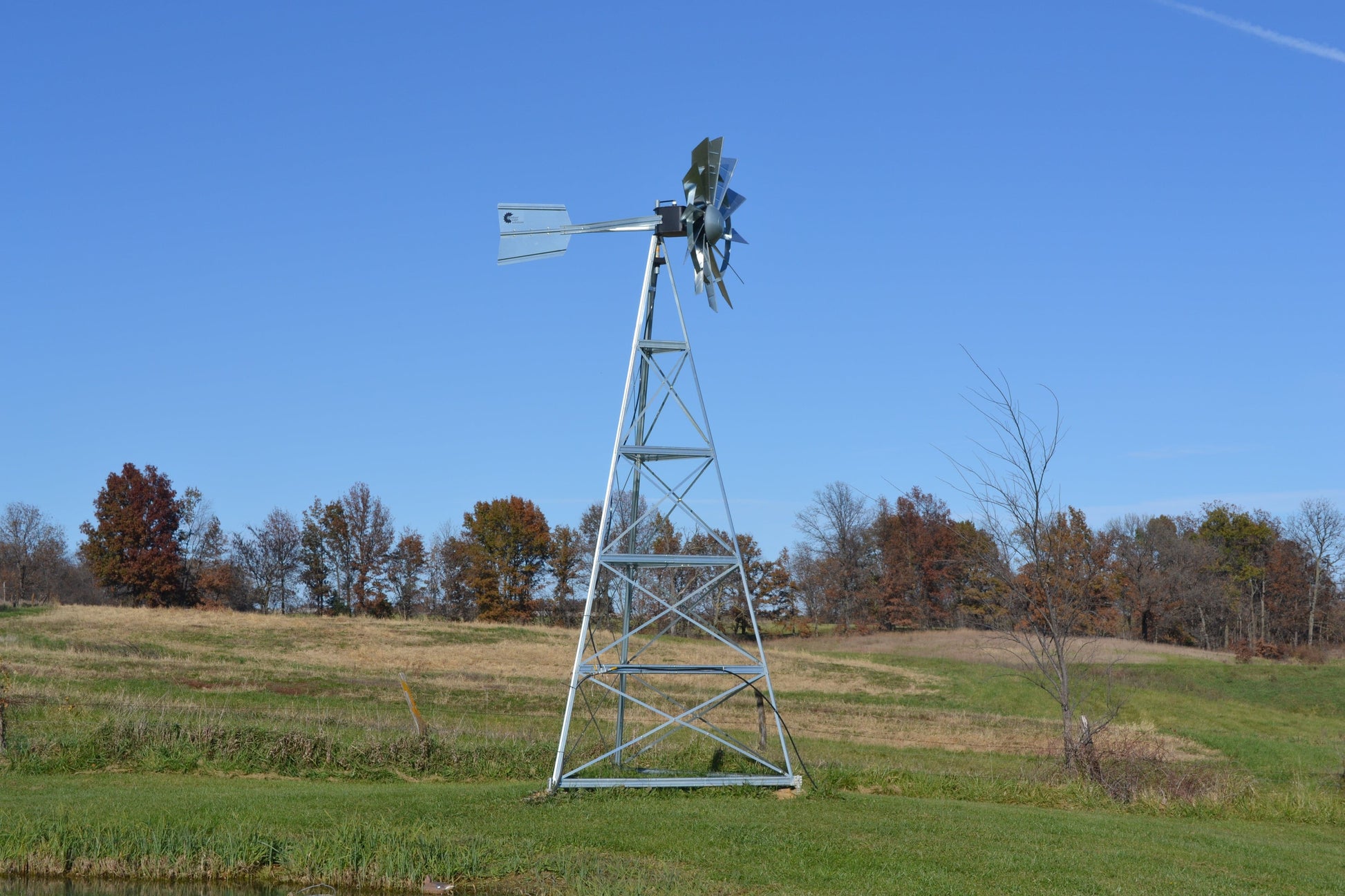

3-Sided Tower Design - The three-sided tower that allows the users to lower and raise the windmill is designed to make the maintenance and repairs easier. All that you need are 3 ground and mounting locations. Available in 12', 16' and 20' heights.
Secure Locking Mechanism - It is possible to attach the windmill head to the shaft.5-Year Warranty - The warranty covers all major mechanical defects inside the compressor for a full five years. When it comes to the other components of the windmill, they are covered for a period of 3 years against defects in workmanship or materials.
|Capacity||Up to 4.5 CFM (cubic feet of air per min.)|
|Swept Area||19.63 sq. ft.|
|Stroke||0.5" Balanced Camshaft Design|
|Over speed Protection||Automatic|
|Foundation||3 ground rods; 1" diameter pipe, 4' long|
Why Buy an Outdoor Water Solutions Aeration Windmill?
- Reduces algae, bacteria
- Gets rid of odors
- Circulates stagnant water
- Creates a healthy ecosystem

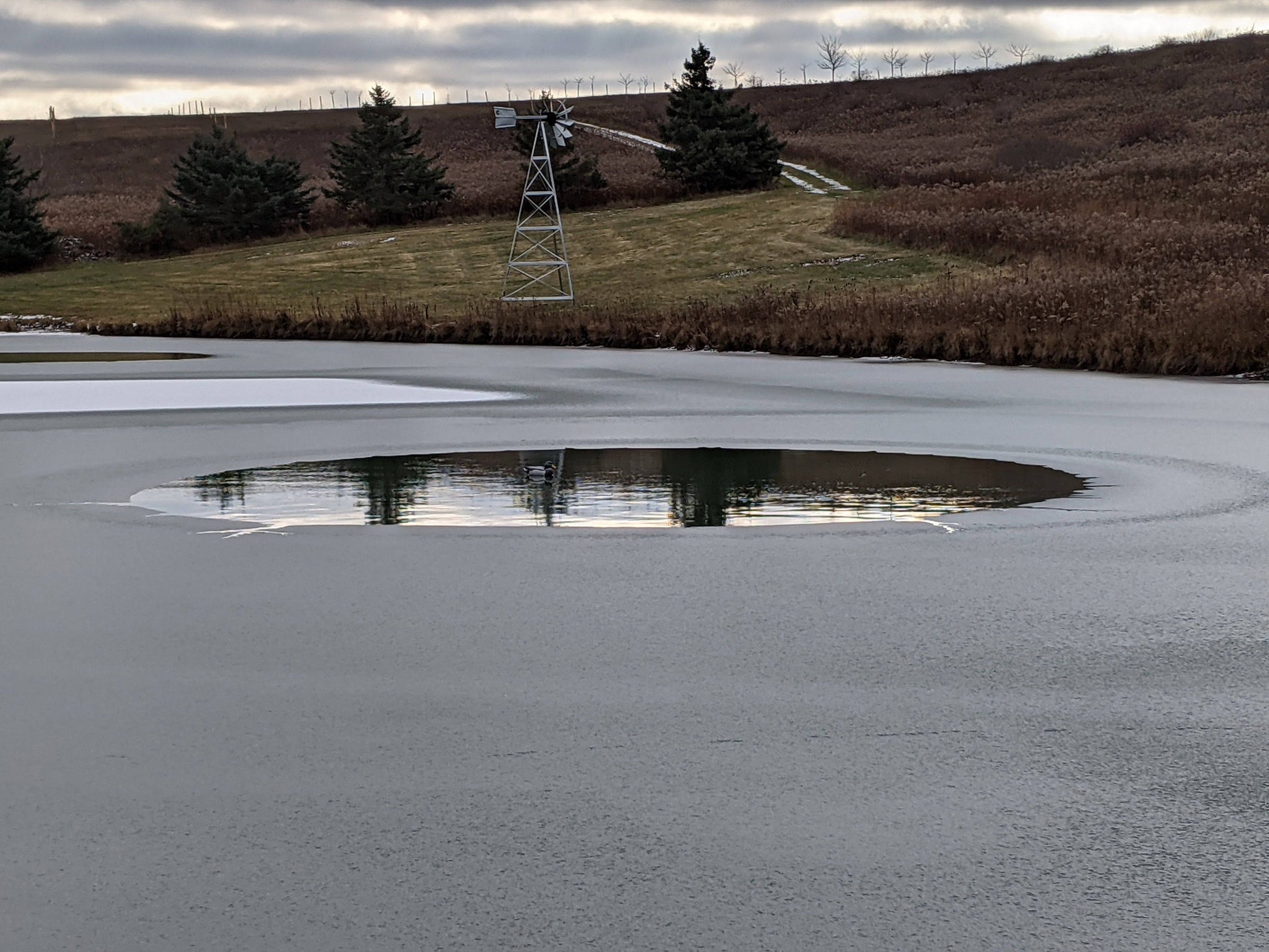

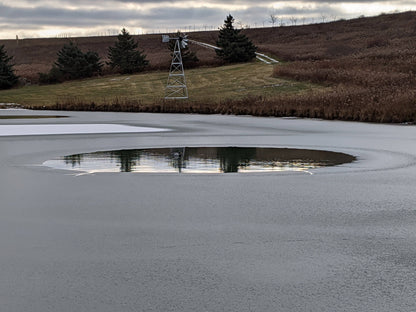

- No pond freezing
|Max Depth||Max Pond Size|
|5-7 feet||3/4 acre|
|8-11 feet||1 1/2 acre|
|12-25 feet||2 acres|
- air stone
Great design and well made windmill
Kit arrived in good condition with the box contents well marked. Everything was there to fully assemble the windmill with a generous supply of nuts and bolts so I did not waste time looking for a dropped piece of hardware. The instruction were detailed and complete. It would help to include some more illustrations in the instructions or stickers on the parts for some of the steps. Was able to fully assemble, mount and raise the windmill in about 10 total hours with some help from a couple of friends. Raised the windmill and sank the air stone about a week ago and when we have a nice wind we see a good steady stream of bubbles.
We are still waiting on it to get here
Great experience and excellent product. Wind starts blowing and my tank looks like a Hot tub. The fish love it.
The 12’ aeration windmill is nice. We had a small issue with the fit of a couple legs and they overnighted a new set. Pretty impressive. Sinking the aeration stone tomorrow but it’s blowing air through the tube nicely today with minimal wind.
