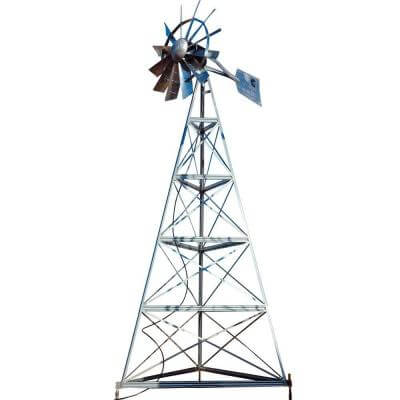

20' Windmill Pond Aerator Kit

20' Windmill Pond Aerator Kit
Item #:AWS0013
Price:$1,540.00
Tubing
Quantity:
Description
Video
Related Items
Let Nature help aerate, circulate and destratify your pond! These wind driven aerators replace electric units that can cost between $30 to $50 per month to operate. In only a few short years these windmills will pay for themselves! Ideal for aerating remote ponds that do not have electricity nearby! These new windmills are similar to the units we previously offered but feature many new improvements:

  • Pumps up to 3 CFM of air in low winds - up to 4.5 CFM in 15+ MPH wind
  • Fast, easy assembly - many steps were completed for you to reduce assembly time!
  • Redesigned blades with rounded edges for better air flow
  • Larger diaphragm and check valves for increased air flow
  • Patent pending technology minimizes bearing fatigue and increases longevity
  • Effective in as little as 3-5 MPH wind

Windmills can be placed up to 1000' away from pond edge, this is helpful for ponds that are in low areas or suronded by trees. Windmill can be located in open area with tube running to the pond. 54'' diameter head has 12 blades and is self governing in high winds. 18 gauge galvanized steel parts will last for years in all weather conditions. Oval holes in all parts make assembly much easier!

Windmill price includes  diffuser and 100ft. poly tubing (upgrade to weighted tubing + $145.00)



Windmill Pond Aerators

Operation - Aerates without electricity in as little as 3-5 mph winds.  One system is designed to aerate ponds that are up to 2-3 acres in size.  For larger ponds, additional systems can be utilized.  When working with wider/shallower ponds, one system is effective, but we recommend the use of multiple airstones to disperse the oxygen more efficiently.  The OWS Selector valves allow you to regulate the oxygen to each airstone.  The windmill can be placed up to 1000' from the pond for effective aeration.

"BalCam" Technology -  Patent pending technology that increases the amount of air produced with a single diaphragm utilizing the new balanced camshaft system.  This innovative new design uses a straight camshaft to balance the workload on three internally mounted sealed bearing's giving you much longer bearing life.

Manufacturing - Manufactured in the USA with top quality 18 gauge galvanized steel to our newly engineered design specs.  Each piece is cut to order and the system assembled in the Outdoor Water Solutions facility.

Assembly - Windmill designed for easy assembly with oval holes for quick alignment and rounded corners for improved safety when working with steel.

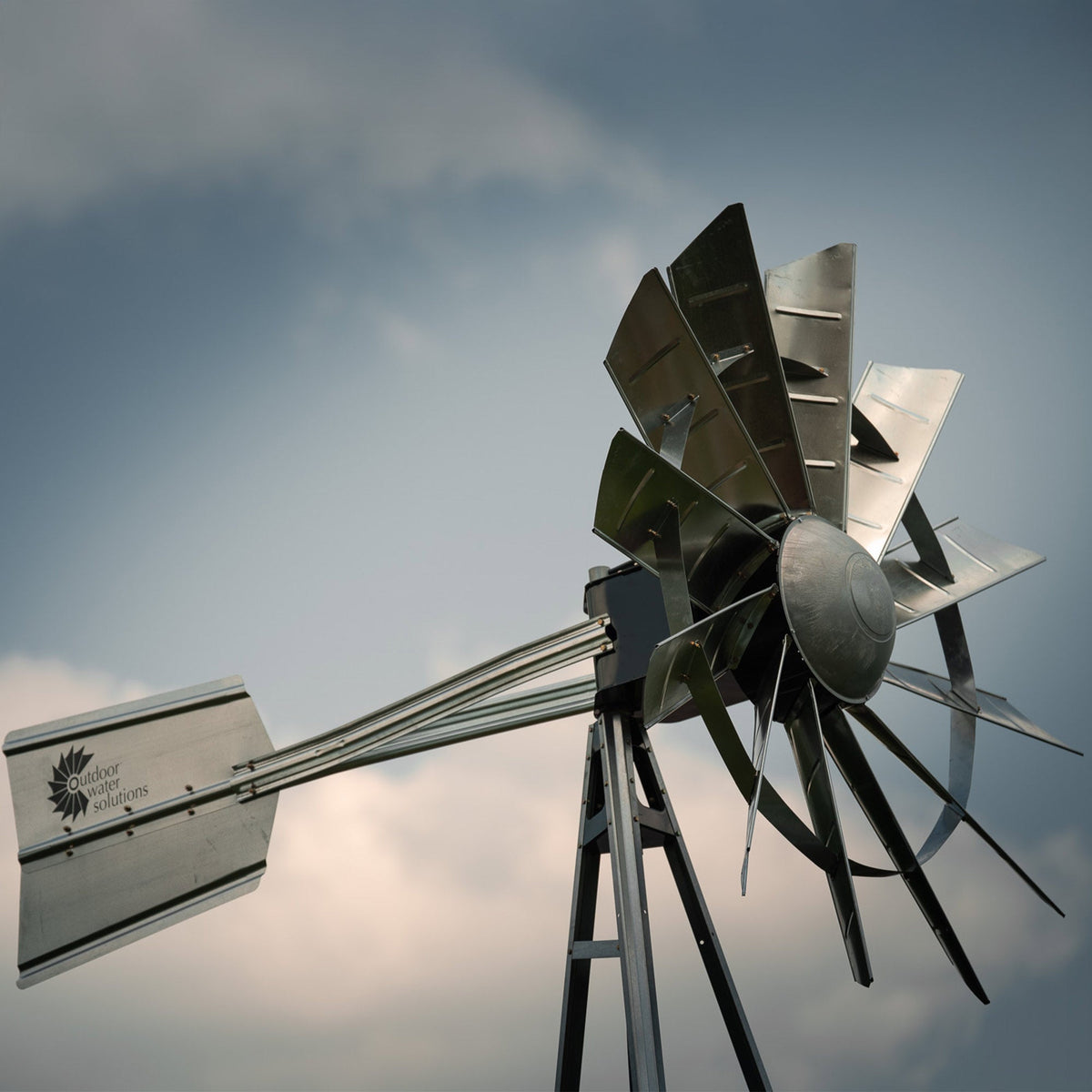

Angle Cut Blades - Engineered to capture and operate even with a limited amount of wind speed. Longer than many competitors on the market to catch more wind.  Total head width is 73", which is the largest head on the market!

One Piece Hub Assembly - Reduces the amount of parts to improve assembly time and improve on long term maintenance of the windmill.  The one piece hub uses two locking collars and a through bolt at the end of the compressor shaft.  You can install the head on the shaft in 5 minutes and it will stay put.  Other companies use squeeze clamps that take over an hour to install and can loosen over time.

Larger Compressor 1/2" Piston Stroke and 10" Diaphragm - Engineered for most efficient air production and maximum compressor life.  Can run up to 3 different diffusers aerating ponds and lakes from 1/4 acre up to 3 acres in size.

Self-governing Heat and Tail fin design  - This uniquely designed tail fin captures the maximum air and is designed to turn out of excessive winds to prevent damage to windmill.

3 Sided Tower Design - The three sided tower allows for ease in lowering and raising the windmill for maintenance and repair and allows for the need of only three ground mounting locations.  Available in 12', 16' and 20' heights.
Secure Locking Mechanism - Allows the windmill head to attach securely to the shaft.

5 Year Warranty - Covering all major mechanical defects inside the compressor for a full five years from the date of purchase.  Other windmill parts are covered for a period of 3 years from the date of purchase against defects in workmanship or materials.

Windmill Specifications:
Capacity Up to 4.5 CFM (cubic feet of air per min.)
Rating 30 PSI
Turbine Type Upwind
Rotor Diameter 73"
Swept Area 19.63 sq. ft.
Blade Design Proprietary
Transmission Direct drive
Stroke 0.5" Balanced Camshaft Design
Over speed Protection Automatic
Foundation 3 ground rods; 1" diameter pipe, 4' long

Why Buy an Outdoor Water Solutions Aeration Windmill?

To keep ponds clean and healthy, water requires oxygen.  Without it, water turns unhealthy, resulting in fish kills and bacteria growth.  You can prevent this by adding oxygen to the water with an Outdoor Water Solutions Aeration Windmill.  An added benefit of aeration is it helps prevent freezing water through water circulation beneath the surface of the pond.

Benefits of Aeration:

  • Reduces algae, bacteria and odor
  • Adds oxygen
  • Circulates stagnant water
  • Improves water for fish, livestock, recreational sites, golf courses and wildlife
  • Minimizes pond freezing
  • Hinders West Nile Virus

Product Reviews

Not Yet Rated


Questions & Answers

5 Questions & 5 Answers
Ron
from Iowa asked:
July 17, 2017
How are winter freeze ups prevented, and how do you clear the system if one happens?
We recommend the windmill freeze control system. You can find that at the link below: http://www.livingwateraeration.com/wifrco.html
Customer Service
on August 8, 2017

Jeanne Largent
from Athens TX asked:
July 7, 2017
So just to understand. The wind is just pumping air into the lake. How deep can you place the hoses
Yes the windmill has a compressor that sends air to the bottom of the pond to a diffuser. You can place the diffuser up to 30' deep in your pond.
Customer Service
on July 8, 2017

Stephen Crane
from Jarrell, Texas asked:
June 29, 2017
Will this help eliminate pond weeds and other unwanted plant growth?
Yes it will get rid of excess nutrients in the water. Aeration will bring a healthy balance to your pond's ecosystem giving you a vibrant healthy looking pond. We believe that aeration is the number one long term treatment for weeds and algae overgrowth.
Customer Service
on August 8, 2017

Dave Patton
from West Virginia asked:
April 20, 2017
What kind of warranty does this come with?
5 Year Warranty – Covering all major mechanical defects inside the compressor for a full five years from the date of purchase. Other windmill parts are covered for a period of 3 years from the date of purchase against defects in workmanship or materials.
Customer Service
on April 21, 2017

Dave Patton
from West Virginia asked:
April 20, 2017
What kind of warranty does this come with?
5 Year Warranty – Covering all major mechanical defects inside the compressor for a full five years from the date of purchase. Other windmill parts are covered for a period of 3 years from the date of purchase against defects in workmanship or materials.
Customer Service
on April 21, 2017
