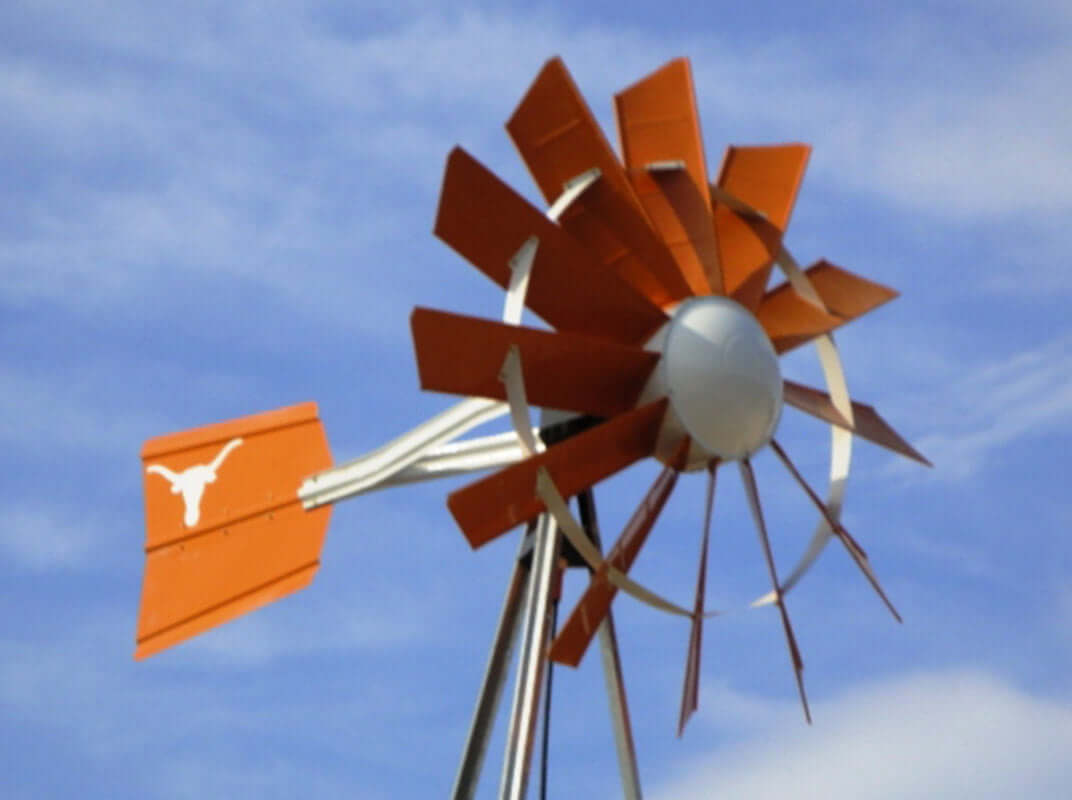

Powder Coated Outdoor Water Solutions 3 Legged Windmill Pond Aerator Kit

Powder Coated Outdoor Water Solutions 3 Legged Windmill Pond Aerator Kit

ITEM #: PCW0173

Regular price $3,19500
Sale price $3,19500 Regular price
Sale Sold out
Estimated Arrival: 5 to 7 business days
View full details

Free Shipping on Orders Over $99

Best Price Guarantee Return Policy

Product Description

If you consider yourself to be eco-friendly, you should consider choosing a Windmill Aeration System. It doesn’t require electricity, which is ideal if you want to aerate water in remote locations. Additionally, blades, braces, tail, tower, and dome can be painted red, black, white, yellow, green, bronze, silver, and blue making it an excellent landscaping feature. As time goes by, you’ll be saving money on electricity bills!

Windmill  Includes:

  • Windmill Tower
  • Windmill Head w/ Compressor
  • 1 Membrane Diffuser w/ base
  • 100' non-weighted poly tubing, which you can upgrade to weighted tubing for additional $145.00

Windmill Aerators Features:

  • Pumps up to 3 CFM of air in low winds - up to 4.5 CFM in 15+ MPH wind
  • Thanks to the larger compressor, 1/2" piston stroke and 10" diaphragm one system can aerate ponds from ¼ acre up to 3 acres in size. It can run up to 3 diffusers.
  • Oval holes, rounded corners, and reduced number of parts make the assembly process quicker.
  • Redesigned blades with rounded edges for better airflow
  • A diaphragm that uses “BalCam” Technology to increase the amount of produced air, while also increasing the durability of the bearings
  • Effective in as little as 3-5 MPH wind, thanks to the excellent design of the blades. Total head width is 73" - largest available head on the market.
  • Heat and tail fin design that self-governs, which decreases the possibility of damage to the windmill
  • The 3-sided tower can be lowered and raised, making all the repairs and maintenance easier. Only three ground mounting locations. 16' and 20' heights are also available.
  • 5-year warranty on the compressor, and a 3-year warranty on other parts of the windmill.
Windmill Installation Info:
  • Dig three holes for each leg 3 ft deep
  • put 4ft rod that comes with the kit in the center and cement it
  • 12' windmill leg to leg 63 inches
  • 16' windmill leg to leg 82 inches
  • 20' windmill leg to leg 100 inches
  • 24' windmill leg to leg 119 inches
  • Blades tip to tip 6.1 feet long
  • 18 gauge steel legs

Windmill CFM

0.5 CFM  5MPH
2 CFM  10MPH
3 CFM  15MPH
4.5 CFM  30MPH

Windmill Specifications:
Capacity Up to 4.5 CFM (cubic feet of air per min.)
Rating 30 PSI
Turbine Type Upwind
Rotor Diameter 73"
Swept Area 19.63 sq. ft.
Blade Design Proprietary
Transmission Direct drive
Stroke 0.5" Balanced Camshaft Design
Over speed Protection Automatic
Foundation 3 ground rods; 1" diameter pipe, 4' long
